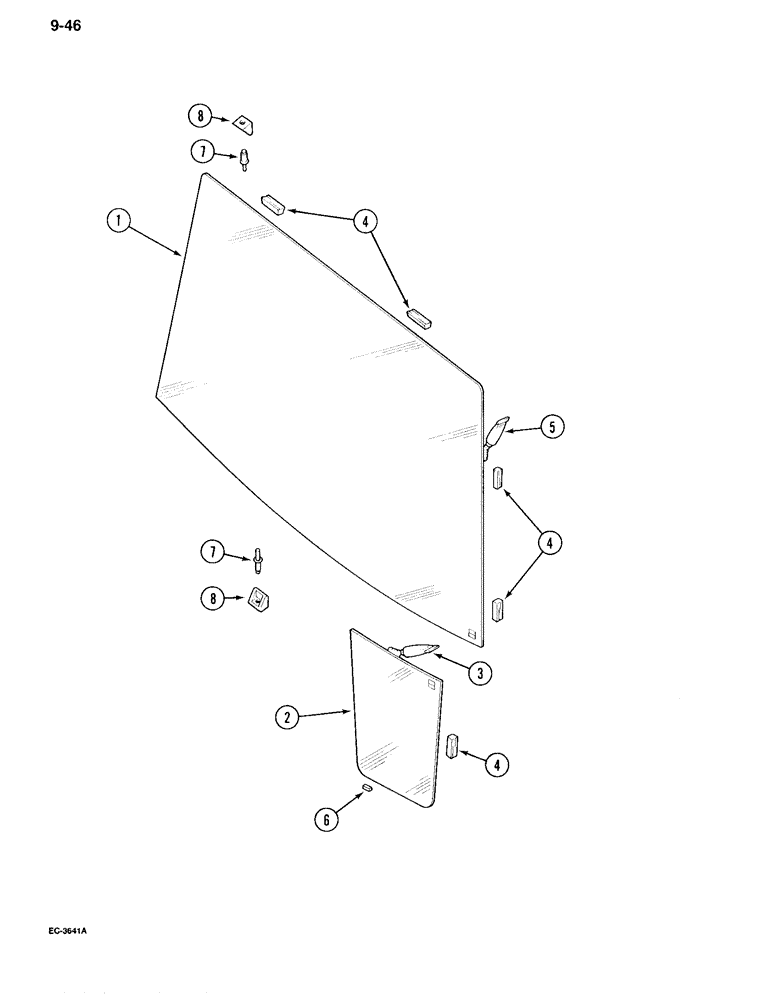

Запчасти Case IH 995 (9-046) - CAB, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (See Figure 9-034), Includes: Ref. 1 - 6

1шт.

1

3233045R1

GLASS

- windshield

1шт.

2

3233036R1

GLASS

- windshield, lower left

1шт.

2

3233037R1

GLASS

- windshield, lower right

1шт.

3

3404053R91

PACKAGE

KIT - service, glass installation

1шт.

4

P741441

SPACER

- bonded glass

10шт.

5

3399917R1

GLUE

KIT - service, glass installation (Order 3404053R91)

1шт.

6

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

7

1535048C1

RIVET

- pop

9шт.

8

3233675R2

SUPPORT

HOLDER - glass

9шт.
