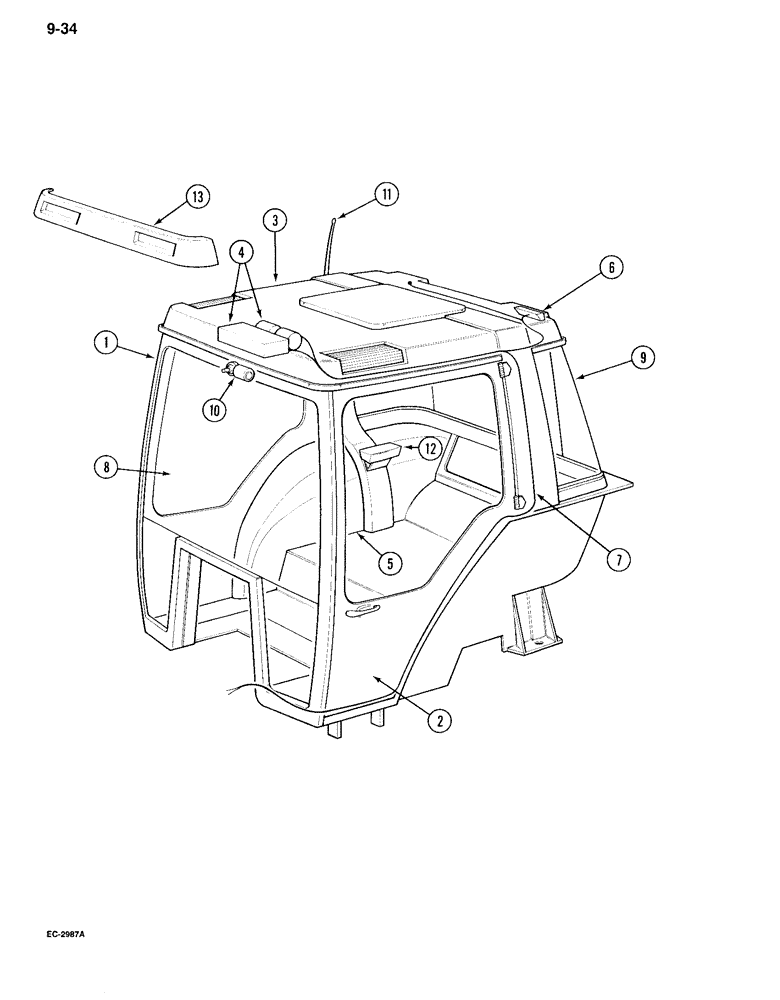

Запчасти Case IH 995 (9-034) - CAB (09) - CHASSIS/ATTACHMENTS

1535196C3

CAB

- complete with trim, Includes: Ref. 1 - 13 and panel assembly

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab (See Figure 9-036)

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - left (See Figure 9-040)

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - right (See Figure 9-040)

1шт.

3

NSS

NOT SOLD SEPARAT

ROOF ASSEMBLY - cab, with cover (See Figure 9-050)

1шт.

4

REF

INSTRUCTION

HEATER ASSEMBLY - cab (See Figure 9-070)

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - wheel housing (See Figure 9-058)

1шт.

6

NSS

NOT SOLD SEPARAT

LIGHT- spot, rear left work light (See Figure 4-18 and 4-20)

1шт.

7

REF

INSTRUCTION

HARNESS - cab (See Figure 4-04)

1шт.

8

NSS

NOT SOLD SEPARAT

WINDSHIELD - front (See Figure 9-046)

1шт.

9

NSS

NOT SOLD SEPARAT

WINDOW - rear (See Figure 9-048)

1шт.

10

REF

INSTRUCTION

MOTOR - windshield wiper (See Figure 9-080)

1шт.

11

REF

INSTRUCTION

ANTENNA - radio (See Figure 9-056)

1шт.

12

REF

INSTRUCTION

ARMREST - right (See Figure 9-060)

1шт.

13

REF

INSTRUCTION

PANEL - front (See Figure 4-18)

1шт.

REF

INSTRUCTION

PANEL ASSEMBLY - heater control (See Figure 9-068)

1шт.
