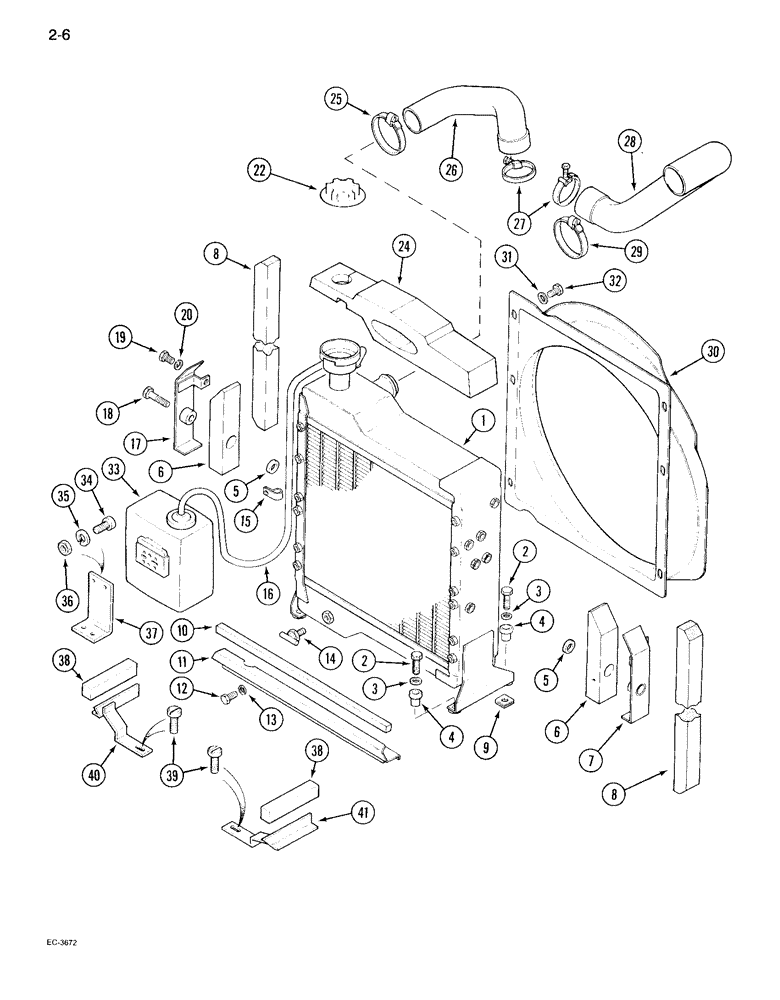

Запчасти Case IH 995 (2-06) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

1536771C2

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-81087

WASHER,13/32" x 1 1/8" x .075"

- flat, 13/32 x 1-1/8 x 1/16 inch

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - isolator

4шт.

5

86224H

SPACER,1/4" Pipe x 3/8"

2шт.

6

98940C1

SEAL

- radiator side shield

2шт.

7

98914C1

GUARD

SHIELD - radiator seal, left

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - radiator side, 38 x 38 x 325 mm

2шт.

REF 8 USE PART NUMBER 98942C1

1шт.

9

84525C1

SPACER

- rear mounting

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, lower baffle, 13 x 13 x 480 mm

1шт.

REF 10 USE PART NUMBER 98944C1

1шт.

11

98958C1

BAFFLE

- lower air

1шт.

12

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

14

103647

VALVE

- drain cock, 1/4 inch taper pipe

1шт.

15

163135H1

CLAMP,7/16", 3/8" Bolt

- bare metal, 0.438 inch diameter

1шт.

16

84515C3

HOSE

- overflow

1шт.

17

98913C1

GUARD

SHIELD - radiator seal, right

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

1500626C91

PLUG

CAP ASSEMBLY - radiator

1шт.

24

98918C1

SEAL

- upper radiator

1шт.

25

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, No. 36, type F

1шт.

26

1536489C1

LARGE HOSE,44.00 mm ID, 50.00 mm ID x 239.00 mm, SAE 20R4 CLASS D1

RADIATOR HOSE, , Upper 44.00 mm ID, 50.00 mm ID x 239.00 mm, SAE 20R4 CLASS D1

1шт.

27

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, No. 36, type F

2шт.

28

84497C2

RADIATOR HOSE,50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

Lower 50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

1шт.

29

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP - hose, N0. 44, type F

1шт.

30

1536556C1

GUARD

SHROUD - radiator

1шт.

31

95-11034

WASHER,1/4"

- flat, 11/32 x 21/32 x 3/64 inch

6шт.

32

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

33

1502360C2

CONTAINER

- water expansion

1шт.

34

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

35

92-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

36

225-14110

NUT,#10-24

2шт.

37

1537013C1

SUPPORT

BRACKET - water container (See Figure 9-010)

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - foam, side panel, 11.8 inch (Cut from 73228C1)

2шт.

38

73228C1

GASKET

SEAL - foam, bulk length,4 foot roll

1шт.

39

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

2шт.

40

1970649C1

BRACKET

ASSEMBLY - side seal, right (Hi-clearance and fabricated bolsters)

1шт.

40

1970647C1

BRACKET

ASSEMBLY - side seal, right (All other versions)

1шт.

41

1970650C1

BRACKET

ASSEMBLY - side seal, left (Hi-clearance and fabricated bolsters)

1шт.

41

1970648C1

BRACKET

ASSEMBLY - side seal, left (All other versions)

1шт.
