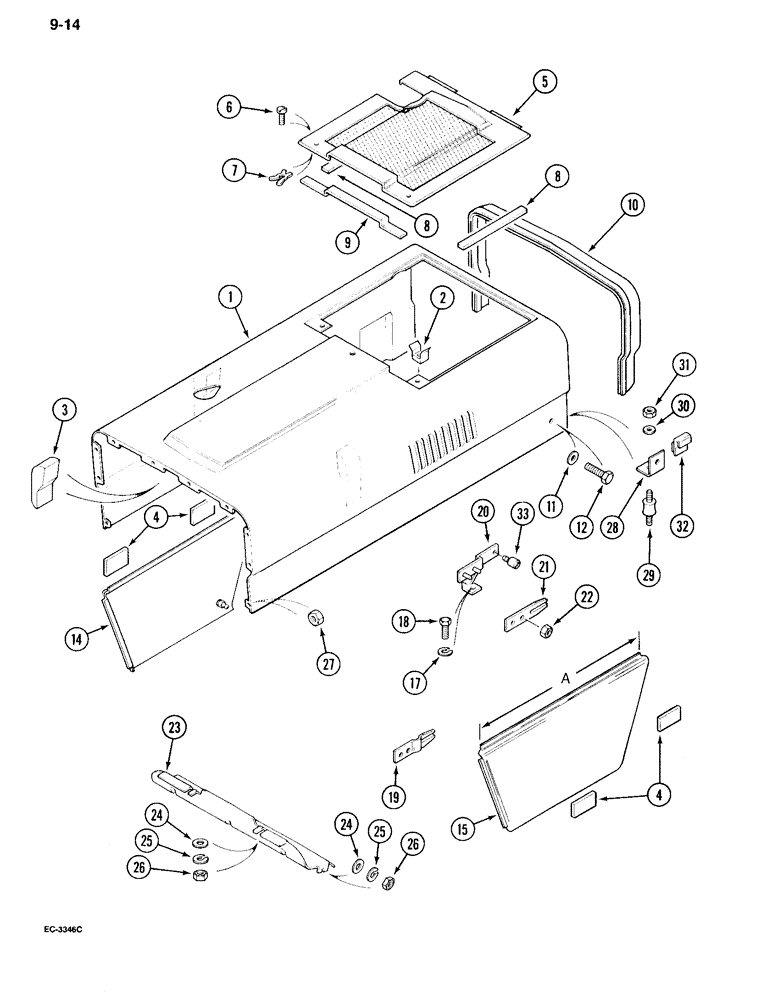

Запчасти Case IH 995 (9-014) - HOOD AND SIDE PANELS, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1536758C1

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust, Includes: Ref. 2 - 4

1шт.

2

1502286C2

NUT,Floating Cage, 5/16"-18

- caged floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

1333189C2

RUBBER BLOCK

BLOCK - rubber

4шт.

5

1536500C1

COVER ASSY

COVER - rear hood, Includes: Ref. 6 - 9

1шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

2шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872R1)

2шт.

7

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10.9 inch (Cut from 73211C1)

1шт.

8

73211C1

GASKET

SEAL - bulk length

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 17 inch (Cut from 73211C1)

2шт.

9

73211C1

GASKET

SEAL - bulk length

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

10

1265280C1

SEAL

- rubber, bulk length, 4 foot roll

1шт.

11

98775C1

WASHER

- flat, 5/16 inch (Black)

2шт.

12

98778C1

BOLT

- hex, 5/16 inch NC (Black)

2шт.

14

1970607C1

PANEL

- side, right (Dimension A: 23 inch)(Order 1539000C1)

1шт.

15

1970608C1

PANEL

- side, left (Dimension A: 23 inch)(Order 1539000C1)

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

19

1333180C1

CLIP

- panel, front

2шт.

20

1333184C2

SUPPORT

- side panel, left

1шт.

20

1333183C2

SUPPORT

- side panel, right

1шт.

21

1333181C1

CLIP

- panel, rear

2шт.

22

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

23

3121397R2

BAFFLE

- upper

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

25

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

27

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

10шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

10шт.

28

3129867R1

SUPPORT

BRACKET - hood cover side

2шт.

29

3129866R1

SHOCK ABSORBER

BLOCK - rubber mounting

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

32

3129868R1

NUT

- caged, 5/16 inch

2шт.

33

104074A1

STOP

- side panels

2шт.
