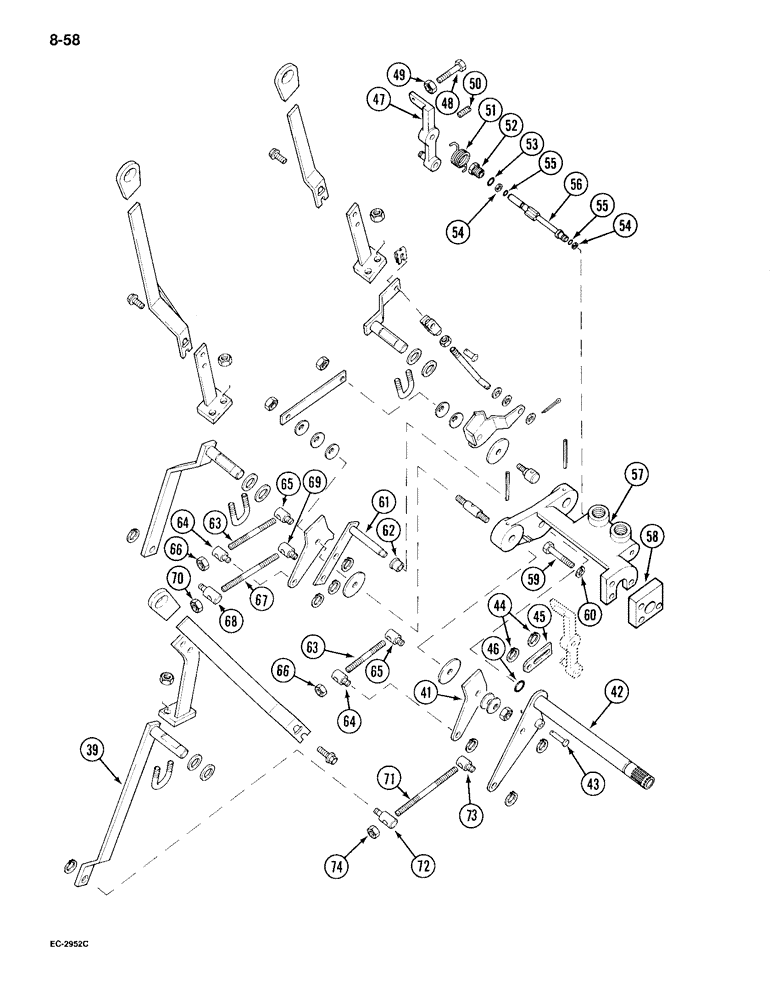

Запчасти Case IH 995 (8-58) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITH CAB (08) - HYDRAULICS

39

3129738R1

SHAFT ASSY.

SHAFT - position control

1шт.

41

3118010R1

LEVER

- position control

1шт.

42

1500628C1

SHAFT ASSY.

SHAFT ASSEMBLY - position control

1шт.

43

527923R1

PIN

- link arm

1шт.

44

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

2шт.

45

527926R1

LINK

- flow control over-ride

1шт.

46

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

47

529353R2

ARM ASSY.

ARM - flow control

1шт.

48

1502037C1

SET SCREW

SCREW - set, hex, 1/4 NC x 1-1/2 inch

1шт.

49

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 NC

1шт.

50

65461C1

SET SCREW

SCREW - 1/4 inch NF, with nylon patch insert

1шт.

51

529352R1

SPRING

- return

1шт.

52

529356R1

PLUG

- variable flow control valve

1шт.

54

529355R1

WASHER

- back-up

2шт.

55

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

2шт.

56

529351R1

SPOOL

- variable flow control valve

1шт.

57

529349R3

SUPPORT

ASSEMBLY - hitch control shaft

1шт.

58

3129761R1

SPACER

- support assembly

1шт.

59

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

60

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

61

1500632C1

SHAFT ASSY.

SHAFT ASSEMBLY - load control

1шт.

62

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

1537791C1

ROD ASSY.

ROD ASSEMBLY - draft control lever, Includes: Ref. 63 - 66

2шт.

63

400085R1

STUD

- connecting rod hitch link

1шт.

64

400086R1

PIN

- connecting hitch link front

1шт.

65

400087R1

PIN

- connecting hitch link rear

1шт.

66

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC

1шт.

1537789C1

ROD ASSY.

ROD ASSEMBLY - draft control lever, Includes: Ref. 67 - 70

1шт.

67

400085R1

STUD

- connecting rod hitch link

1шт.

68

1500634C1

PIN

- connecting hitch link front

1шт.

69

400087R1

PIN

- connecting hitch link rear

1шт.

70

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC

1шт.

1537790C1

ROD ASSY.

ROD ASSEMBLY - draft control lever, Includes: Ref. 71 - 74

1шт.

71

1500635C1

STUD

- hitch link

1шт.

72

1500634C1

PIN

- connecting hitch link front

1шт.

73

400087R1

PIN

- connecting hitch link rear

1шт.

74

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam 3/8 inch NC

1шт.

53

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
