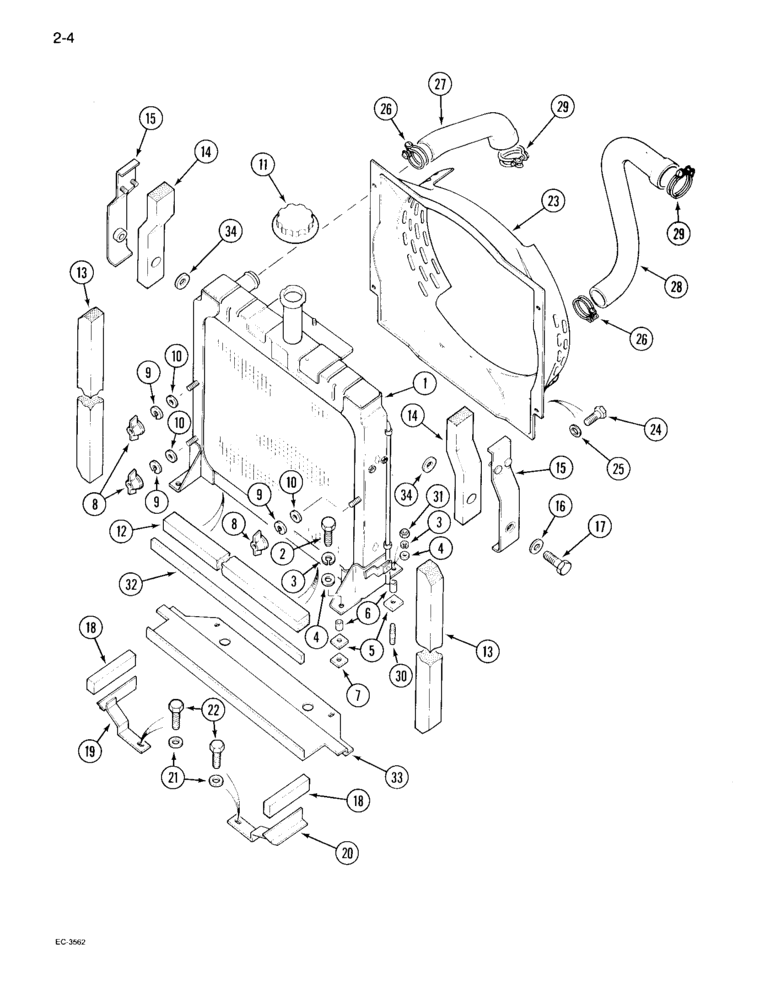

Запчасти Case IH 995 (2-04) - RADIATOR AND CONNECTIONS, WITHOUT TROPICAL COOLING (02) - ENGINE

1

1536373C1

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

5

47240D

PAD

- radiator mounting

4шт.

6

99427C2

SPACER

BUSHING - radiator mounting

4шт.

7

84525C1

SPACER

- rear mounting

2шт.

8

7500032

BUSHING

NUT - wing, 5/16 inch NC

3шт.

9

180322

LOCK WASHER

- lock, internal tooth, 5/16 inch

3шт.

9

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch (Optional to 180322)

3шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

11

1500626C91

PLUG

CAP ASSEMBLY - radiator

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - foam, lower radiator, 450 mm

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 325 mm

2шт.

14

98934C1

SEAL

SEAL - foam, side shield

2шт.

15

98907C1

GUARD

SHIELD ASSEMBLY - radiator seal

2шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

18

NSS

NOT SOLD SEPARAT

GASKET - foam, side panel, 8.8 inch (Cut from 73228C2)

2шт.

18

73228C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

19

1970649C1

BRACKET

ASSEMBLY - side shield, right (Hi-clearance and fabricated bolsters)

1шт.

19

1970647C1

BRACKET

ASSEMBLY - side shield, right (All other versions)

1шт.

20

1970650C1

BRACKET

ASSEMBLY - side shield, left (Hi-clearance and fabricated bolsters)

1шт.

20

1970648C1

BRACKET

ASSEMBLY - side shield, left (All other versions)

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

23

527475R3

HOUSING

- engine cooling fan

1шт.

24

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

26

39149H

HOSE CLAMP

CLAMP - hose, No. 64, 1.69 inch closed ID

2шт.

26

705935R91

HOSE CLAMP

CLAMP - hose, Serial Range: (Optional-39149H)

2шт.

27

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

27

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

28

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

29

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

2шт.

30

99688C1

STUD

- 3/8 inch NC x 47 mm

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - foam,baffle 13 x 13 x 416 mm

1шт.

33

98957C1

BAFFLE

- lower air

1шт.

34

86224H

SPACER,1/4" Pipe x 3/8"

2шт.
