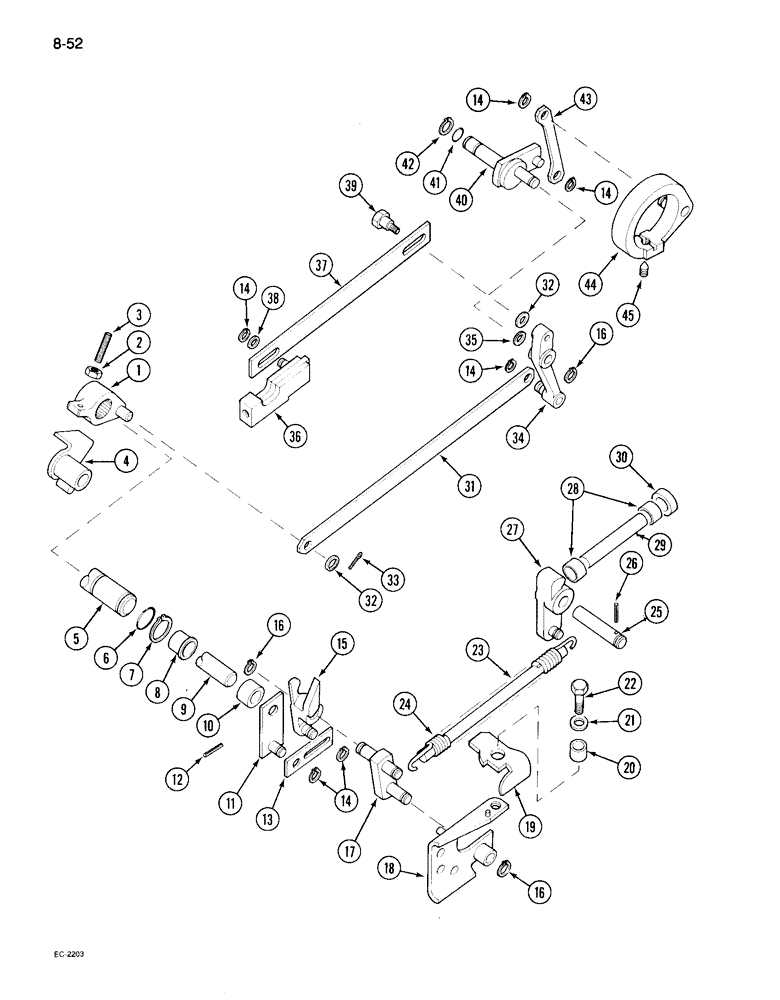

Запчасти Case IH 995 (8-52) - DRAFT CONTROL, INTERNAL CONTROL LINKAGE (08) - HYDRAULICS

1

400017R1

LEVER ASSY.

LEVER ASSEMBLY - slow motion actuating

1шт.

2

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

3

1502037C1

SET SCREW

SCREW - set, hex, 1/4 NC x 1-1/2 inch

1шт.

4

399889R1

ARM ASSY.

ARM - draft retarding (See Figure 8-48)

1шт.

5

94167C1

SHAFT

ASSEMBLY - position control (Without cab) (See Figure 8-54)

1шт.

5

1500628C1

SHAFT ASSY.

SHAFT ASSEMBLY - position control (With cab) (See Figure 8-58)

1шт.

6

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk, Class 6

1шт.

7

303004R1

SNAP RING,#78, Ext

1шт.

8

374940R1

NYLON BEARING

BEARING - control lever shaft

1шт.

9

94168C1

SHAFT

ASSEMBLY - load control (Without cab) (See Figure 8-54)

1шт.

9

1500632C1

SHAFT ASSY.

SHAFT ASSEMBLY - load control (With cab) (See Figure 8-58)

1шт.

10

527927R1

SPACER

- load control shaft

1шт.

11

534728R1

LEVER

ASSEMBLY - draft sensitivity control

1шт.

12

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

13

400044R1

LINK

-, Serial Range: trigger-quadrant

1шт.

14

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

3шт.

15

400042R2

LEVER ASSY.

LEVER ASSEMBLY - draft control trigger

1шт.

16

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

3шт.

17

400039R1

PLATE ASSY.

PLATE ASSEMBLY - eccentric

1шт.

18

400026R2

SUPPORT

BRACKET ASSEMBLY - switch lever (See Figure 8-44)

1шт.

19

400033R1

LEVER

- hydraulic switch

1шт.

20

532468R1

SPACER

- safety switch

1шт.

21

532467R1

WASHER

- safety switch

1шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

23

400024R2

BAR

- sensing beam

1шт.

24

400025R1

SPRING

- sensing beam

1шт.

25

400038R1

PIN

- sensing lever

1шт.

26

20092R1

PIN,3/16" x 1 3/8", Coiled

1шт.

27

400021R1

LINK ASSY.

LINK - draft control

1шт.

28

273279R91

BUSHING

BEARING - sensing shaft (See Figure 8-46)

2шт.

29

400020R1

ROD

- draft control

1шт.

30

376022R91

OIL SEAL

SEAL - oil, sensing shaft

1шт.

31

400016R1

BAR

- walking beam to quadrant link

1шт.

32

95-11034

WASHER,1/4"

- flat, 11/32 x 21/32 x 3/64 inch

2шт.

33

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

34

400014R1

LEVER ASSY.

LEVER ASSEMBLY - follow up walking beam

1шт.

35

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

36

527617R1

ARM ASSY.

ARM ASSEMBLY - main valve (See Figure 8-48)

1шт.

37

400019R1

LINK

- walking, Serial Range: beam-valve

1шт.

38

95-81068

WASHER,0.34" ID x 0.66" OD x 0.02" Thk

- flat, 11/32 x 21/32 x 1/64 inch

1шт.

39

376041R1

SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet

Shoulder

1шт.

40

400036R1

ECCENTRIC ASSY.

ECCENTRIC ASSEMBLY - position control

1шт.

41

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

42

971043R1

SNAP RING,#50, Ext

1шт.

43

400008R1

LINK

- walking, position control

1шт.

44

533340R1

HUB ASSY.

HUB - rockshaft actuating

1шт.

45

377792R1

SET SCREW

SCREW - set, rockshaft hub

1шт.
