Запчасти Case IH 995 (8-42) - REMOTE AUXILIARY VALVE CONTROL, FIRST, SECOND AND THIRD BANK, WITH CAB (08) - HYDRAULICS

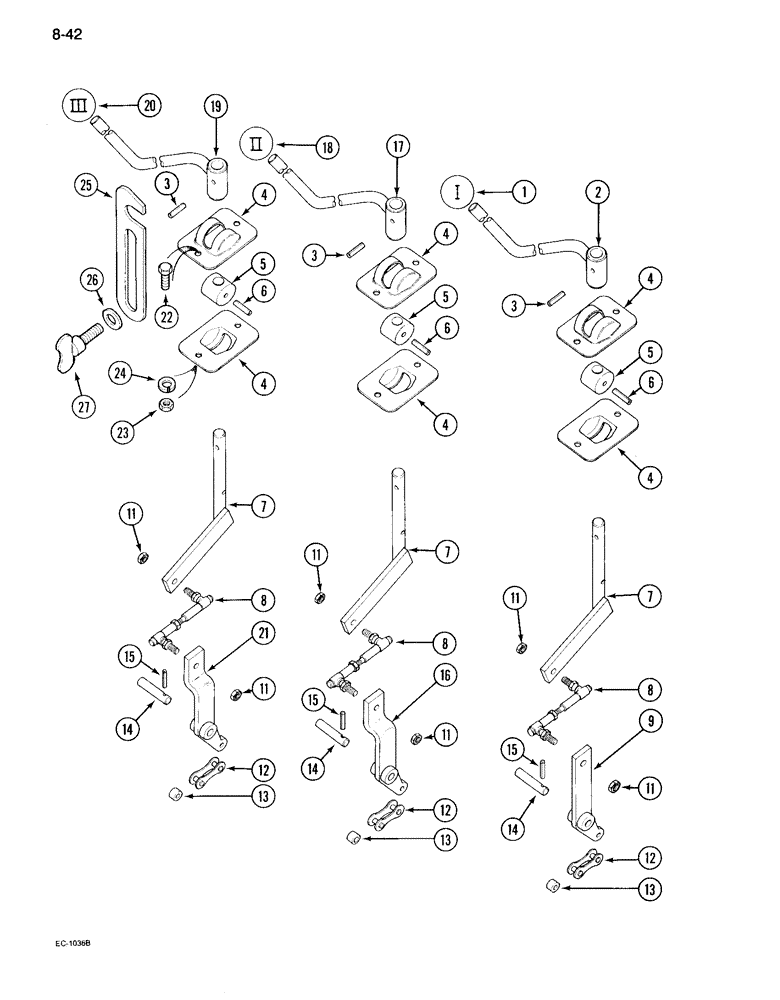

Схема запчастей Case IH 995 - (8-42) - REMOTE AUXILIARY VALVE CONTROL, FIRST, SECOND AND THIRD BANK, WITH CAB (08) - HYDRAULICS
1
5
17
11
15
9
12
27
5
13
11
13
8
25
4
6
12
3
14
26
12
6
15
3
11
22
7
4
8
11
14
20
13
21
18
4
11
8
3
7
19
16
14
4
4
11
15
2
6
5
4
23
7
24

Артикул

Название

Примечание

Количество

1

3123663R1

BUTTON

KNOB - ball (Black), 1st bank control lever

1шт.

2

1500160C1

LEVER ASSY.

LEVER - complete, 1st bank remote auxiliary valve

1шт.

3

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

4

3226334R2

CLAMP

CLAMP - control lever

1шт.

5

3229389R1

BUSHING

PAD - pivot block

1шт.

6

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

7

1500168C1

LEVER ASSY.

LEVER - bellcrank

1шт.

8

80333C91

JOINT

- ball, 6 mm

1шт.

9

94238C1

LEVER

- bellcrank, No. 1 auxiliary valve

1шт.

11

934305R1

THIN NUT,M6 x 1, Thin

NUT - hex, 6 mm - 1, class 10

1шт.

12

1310D

LINK

- connecting, No. 50

1шт.

13

94274C1

NYLON BEARING,5.15mm ID x 8.04mm OD x 8mm L

BEARING - auxiliary valve spool link

1шт.

14

99609C1

PIN

- straight, 3/8 x 1.45 inch

1шт.

15

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

16

94239C1

LEVER

- bellcrank, No. 2 auxiliary valve

1шт.

17

1500164C1

LEVER

- complete, 2nd bank remote auxiliary valve

1шт.

18

99875C1

BUTTON

KNOB - ball (Green), 2nd bank control lever

1шт.

19

1500166C1

LEVER ASSY.

LEVER - complete, 3rd bank remote auxiliary valve

1шт.

20

1500159C1

KNOB

- ball (Blue), 3rd bank control lever

1шт.

21

94240C1

LEVER

- bellcrank, No. 3 auxiliary valve

1шт.

22

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

1шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

25

99434C1

PLATE

- lockout, auxiliary valve lever

1шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

27

99972C1

SCREW,3/8" - 16 x 1 3/4"

- wing, adjusting

1шт.

Выбрано товаров: 26
