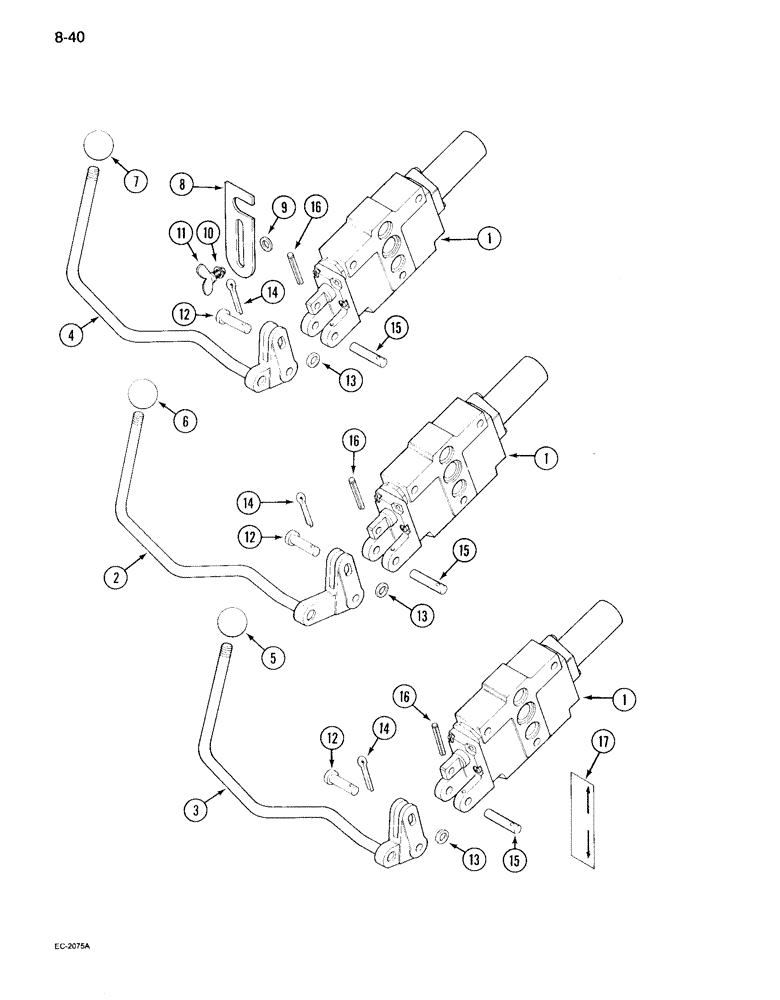

Запчасти Case IH 995 (8-40) - REMOTE AUXILIARY VALVE CONTROL, FIRST, SECOND AND THIRD BANK, WITHOUT CAB (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-36)

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-38)

1шт.

2

94136C2

LEVER ASSY.

LEVER - complete, 2nd bank remote auxiliary valve

1шт.

3

94134C2

LEVER ASSY.

LEVER - complete, 1st bank remote auxiliary valve

1шт.

4

94158C2

LEVER ASSY.

LEVER - complete, 3rd bank remote auxiliary valve

1шт.

5

3123087R1

BUTTON

KNOB - ball (Black), 1st bank control lever

1шт.

6

99876C1

BUTTON

KNOB - ball (Green), 2nd bank control lever

1шт.

7

99877C1

BUTTON

KNOB - ball (Blue), 3rd bank control lever

1шт.

8

3125862R1

PLATE

- lockout, auxiliary valve lever

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - adjusting

1шт.

12

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, 5/16" x 1 3/16"

1шт.

13

896-10008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

1шт.

14

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

99609C1

PIN

- straight, 3/8 x 1.45 inch

1шт.

16

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

17

537080R2

PRODUCT GRAPHIC

DECAL - control lever (English)

1шт.

17

1092881R2

DECAL

- control handle (French)

1шт.
