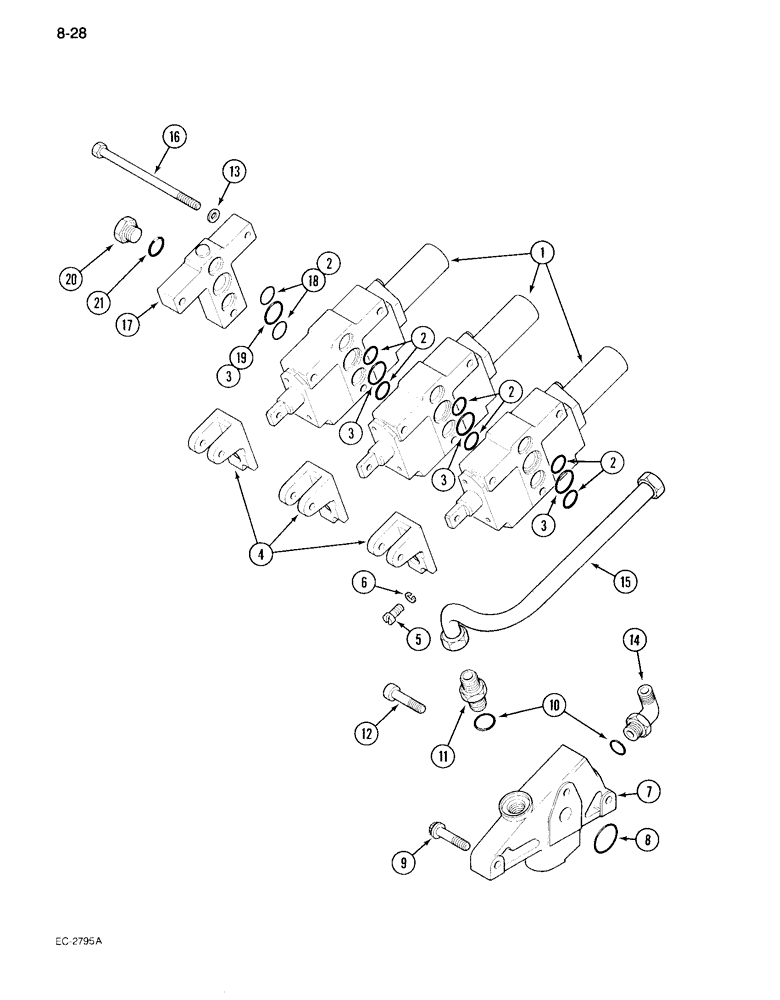

Запчасти Case IH 995 (8-28) - REMOTE AUXILIARY VALVES, FIRST, SECOND, OR THIRD BANK MOUNTING, WITH CAB (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (Used for 1st, 2nd, or 3rd bank position) (See Figure 8-36), Includes: Ref. 2 and 3

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with one check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-38), Includes: Ref. 2 and 3

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 x 2.5 mm

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 x 2.5 mm

1шт.

4

1958026C2

SUPPORT

BRACKET - auxiliary valve

1шт.

5

1958025C1

SCREW

- M6 x 12; 8,8, For Support Holes With Recess

1шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8

1шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

7

94070C1

PLATE

BLOCK - control valve transfer

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

9

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - 12 point flanged, 3/8 NC x 1-3/4 inch

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

12

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, hex socket, 3/8 NC x 1-3/4 inch

1шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

1шт.

15

99530C1

PIPE ASSY.

TUBE ASSEMBLY - auxiliary valve return

1шт.

16

815-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 mm - 1.25 x 80 mm (1 valve fit)

3шт.

16

815-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

- hex, 8 mm - 1.25 x 120 mm (2 valve fit)

3шт.

16

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

- hex, 8 mm - 1.25 x 160 mm (3 valve fit)

3шт.

1971164C1

COVER ASSY

COVER ASSEMBLY - end, Includes: Ref. 17 - 21

1шт.

17

1971165C1

COVER

- end

1шт.

18

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 x 2.5 mm

2шт.

19

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 x 2.5 mm

1шт.

20

1971184C1

PLUG

- end cover

1шт.

21

1971185C1

O-RING,13.3mm ID x 2.4mm Width

- 13.3 ID x 2.4 mm wide

1шт.
