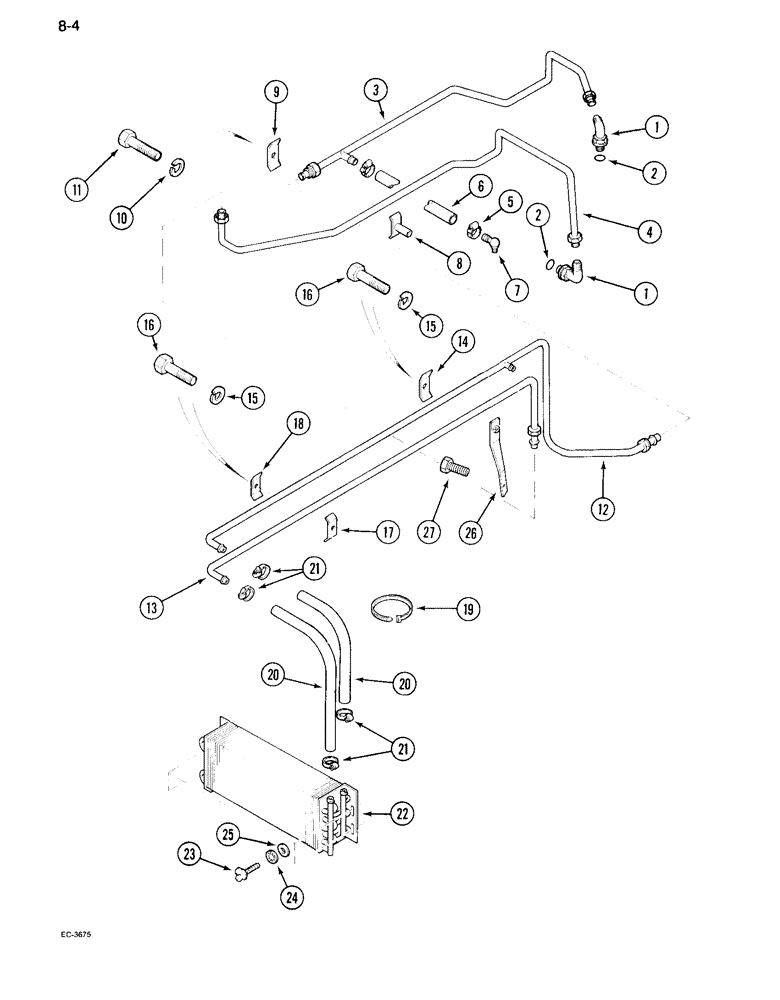

Запчасти Case IH 995 (8-04) - OIL COOLER SYSTEM (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

3

66096C4

PIPE

TUBE ASSEMBLY - oil cooler return, rear (Without cab)

1шт.

3

1500138C1

TUBE ASSY.,8 mm OD, 589.5, 138 mm Length

TUBE ASSEMBLY - oil cooler return, rear (With cab)

1шт.

4

3129259R1

PIPE

TUBE ASSEMBLY - oil cooler supply, rear (Without cab)

1шт.

4

1536562C1

HYD TUBE,0.5" OD, 997.9, 430 mm Length

TUBE ASSEMBLY - oil cooler supply, rear (With cab)

1шт.

5

3125239R1

COLLAR

CLAMP - hose, worm drive

2шт.

6

1500540C1

HOSE

- lubrication

1шт.

7

88117C1

PIPE,60 mm L

TUBE - lubricator inlet

1шт.

8

1500148C1

CLAMP

- tube

1шт.

9

602836C1

CLAMP

- tube

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

1шт.

12

1536516C1

HYD TUBE,0.5" OD, 75 mm Length

TUBE ASSEMBLY - oil cooler return, front (Without cab)

1шт.

12

1536491C1

HYD TUBE,0.5" OD, 1326.3, 419 mm Length

TUBE ASSEMBLY - oil cooler return, front (With cab)

1шт.

13

1536515C1

HYD TUBE,0.5" OD, 1277.6, 75 mm Length

TUBE ASSEMBLY - oil cooler supply, front (Without cab)

1шт.

13

1536490C1

HYD TUBE,0.5" OD, 846.3, 278.9 mm Length

TUBE ASSEMBLY - oil cooler supply, front (With cab)

1шт.

14

529644R11

CLAMP

- tube

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

16

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.0 x 25 mm

2шт.

17

529644R11

CLAMP

ASSEMBLY - tube, Includes: Ref. 18

1шт.

18

529644R1

CLAMP

- tube

1шт.

19

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, 10 inch long (Order L18337)

5шт.

19

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

2шт.

20

NSS

NOT SOLD SEPARAT

HOSE - oil cooler, 650 mm (Cut from 3125980R1)

2шт.

20

3125980R1

LARGE HOSE

HOSE - rubber, 1/2 inch ID, bulk length

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, No. 10, type F

4шт.

22

1536991C2

COOLER, OIL

COOLER - oil

1шт.

23

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

- thumb, 5/16 inch NC

4шт.

24

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

4шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

26

1537054C1

SUPPORT

BRACKET ASSEMBLY - clamp

1шт.

27

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.
