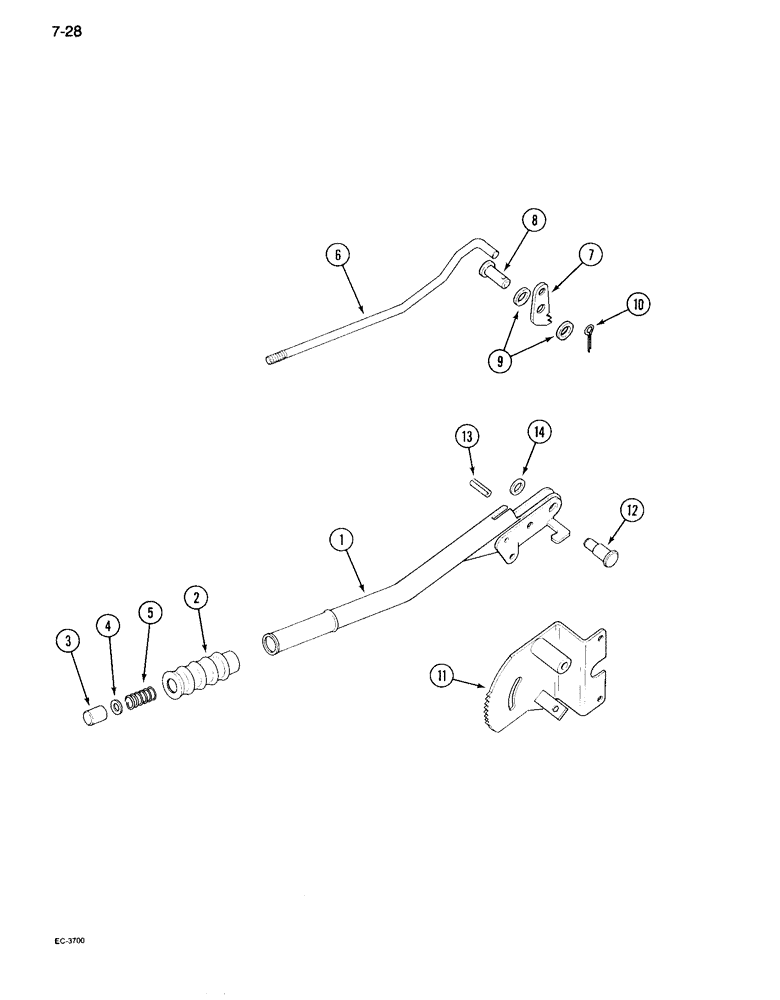

Запчасти Case IH 995 (7-28) - PARK BRAKE HAND LEVER, MFD ORCHARD TRACTOR (07) - BRAKES

1331093C2

LEVER

ASSEMBLY - park brake, Includes: Ref. 1 - 14

1шт.

1

94265C5

LEVER

- hand brake

1шт.

2

3125185R1

GRIP

- lever (PVC)

1шт.

3

3125177R1

BUTTON

- release

1шт.

4

95-34019

WASHER,0.19" ID x 0.44" OD x 0.04" Thk

- flat, 3/16 x 7/16 x 1/16 inch

1шт.

5

3125184R1

SPRING

- button return

1шт.

6

94262C3

ROD

- pusher

1шт.

7

94264C2

PAWL

- ratchet

1шт.

8

20687R1

CLEVIS PIN,1/4" x .609"

PIN - clevis, 1/4 x 49/64 inch

1шт.

9

3125181R1

WASHER

- pawl fulcrum

2шт.

10

3125183R1

PIN, SPLIT (COTTER)

PIN - cotter, pawl fulcrum

1шт.

11

1331094C2

RATCHET

PLATE ASSEMBLY - ratchet

1шт.

12

94263C3

PIN

- pivot

1шт.

13

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

14

1330750C2

SPACER

- pivot pin

1шт.
