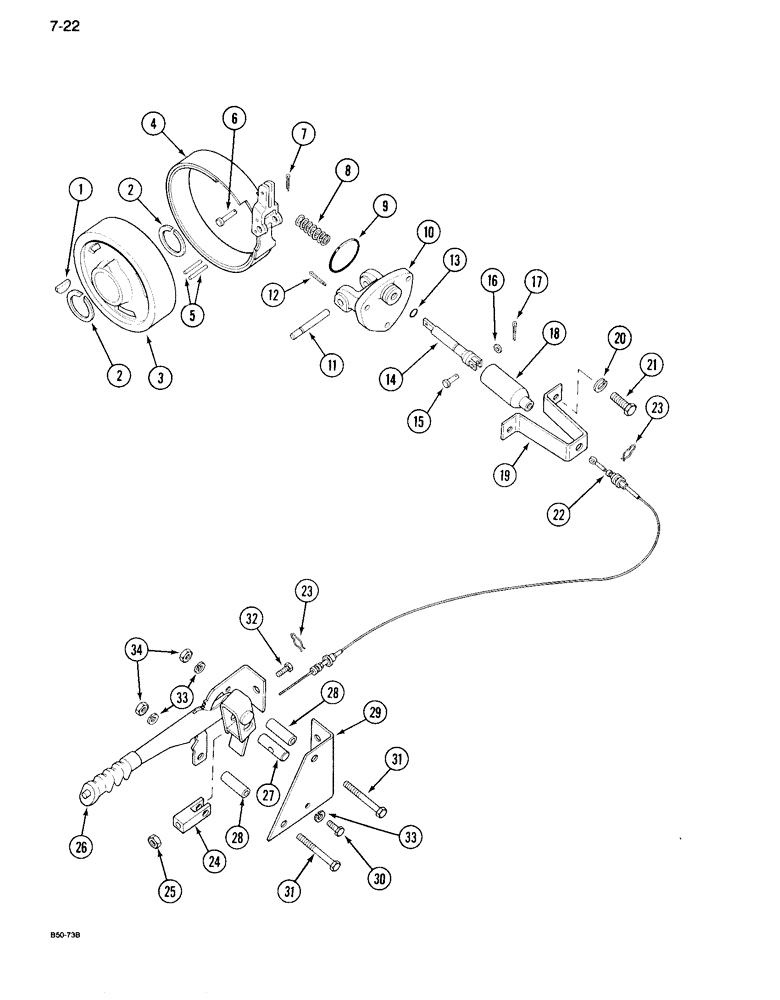

Запчасти Case IH 995 (7-22) - PARK BRAKE LINKAGE, TWO WHEEL DRIVE ORCHARD TRACTOR (07) - BRAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING - snap, brake drum retaining

2шт.

2

67628C1

CIRCLIP

RING - retaining, 0.093 inch

1шт.

2

67575C1

CIRCLIP

RING - retaining, 0.090 inch

1шт.

2

67574C1

CIRCLIP

RING - retaining, 0.087 inch

1шт.

2

67573C1

SNAP RING,2.13mm Thk, Ext

RING - retaining, 0.084 inch

1шт.

2

67572C1

CIRCLIP

RING - retaining, 0.081 inch

1шт.

2

66077C1

CIRCLIP

RING - retaining, 0.078 inch

1шт.

2

67571C1

CIRCLIP

RING - retaining, 0.075 inch

1шт.

2

67570C1

CIRCLIP

RING - retaining, 0.072 inch

1шт.

2

67569C1

CIRCLIP

RING - retaining, 0.069 inch

1шт.

2

67568C1

CIRCLIP

RING - retaining, 0.066 inch

1шт.

3

399828R1

HUB

- brake drum

1шт.

4

1971050C1

BRAKE BAND

BAND - brake and actuating toggle, Includes: Ref. 5

1шт.

5

535544R1

PIN

- anchor, 1/4 x 1-1/2 inch

2шт.

6

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 31/32 inch

1шт.

7

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

402000R1

SPRING

- parking brake return

1шт.

9

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

10

401997R2

PIVOT

- parking brake

1шт.

11

401998R1

PIVOT PIN

PIN - parking brake pivot

1шт.

12

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

14

402014R1

PLUNGER

- parking brake pivot

1шт.

15

702269R1

HEADED PIN,5/16" x 15/16"

PIN - plain head, 5/16 x 15/16 inch

1шт.

16

95-11034

WASHER,1/4"

- plain, 11/32 x 11/16 x 1/16 inch

1шт.

17

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

18

402015R1

BOOT

- cable protection

1шт.

19

401999R1

SUPPORT

BRACKET - cable housing anchor lower

1шт.

20

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

22

3129788R2

CABLE ASSY.

CABLE - parking brake

1шт.

23

148150

HAIR PIN COTTER,3/8" Retainer

PIN - retaining, 3/8 inch

2шт.

24

3129790R1

BLOCK

- brake cable retaining

1шт.

25

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

26

3129929R92

LEVER ASSY.

LEVER - hand, park brake (See Figure 7-26)

1шт.

27

3129789R1

PIN,16mm OD x 50mm L

- park brake cable

1шт.

28

11531N

SPACER,3/8" Pipe x 2"

- standard pipe, 3/8 x 2 inch

2шт.

29

1502240C1

SUPPORT

BRACKET - handbrake support

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

31

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.
