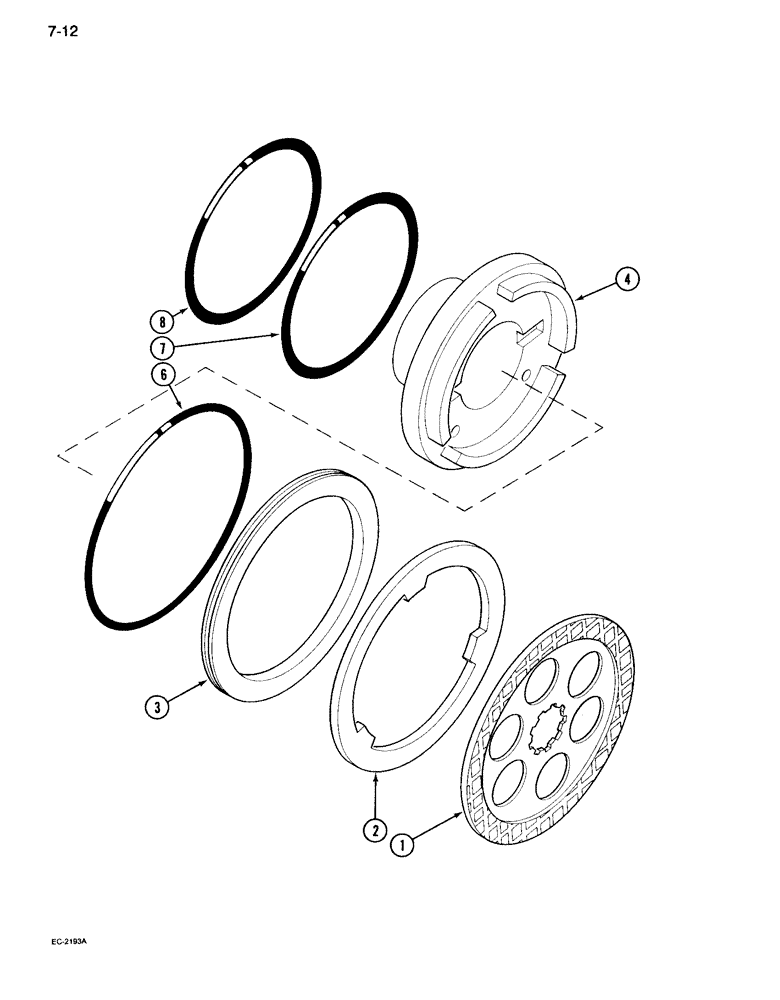

Запчасти Case IH 995 (7-12) - DIFFERENTIAL BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC - brake center

2шт.

2

399736R3

RING

- brake (Assemble with numbered face inboard)

2шт.

3

114621C1

PISTON

- brake

2шт.

4

399770R2

BEARING CARRIER

CARRIER - differential bearing, right (See Figure 6-042)

1шт.

4

399769R2

BEARING CARRIER

CARRIER - differential bearing, left (See Figure 6-042)

1шт.

6

238-6274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

2шт.

Part of brake O-Ring service kit P/N 539535R91

1шт.

7

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

Part of brake O-Ring service kit P/N 539535R91

1шт.

8

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch wide

2шт.

Part of brake O-Ring service kit P/N 539535R91

1шт.

P/N 289506R1 this O-Ring slides over the step on the backside (inside) step of the differential carrier (Ref. #4). In some instances this O-Ring has a tendency to roll off when installing the carrier. If this happens there are two methods that will help but, do not do this until you have gone through the shimming procedures and are ready to install the carrier. 1. Apply a small amount of grease to the O-Ring to help retain it. 2. With clean surfaces (free of grease and oil) put a small amount of super glue

1шт.

539535R91

O-RING KIT

- service, brake O-rings, Includes: Ref. 6, 7 and 8

1шт.

6

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

Optional heavy duty for abnormal brake usage -274, Cl 8, 9.984" ID x .139" Thk

2шт.

7

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

Optional heavy duty for abnormal brake usage -267, Cl 8, 8.234" ID x .139" Thk

2шт.

8

1536081C1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 8, 90 Duro

- 7-1/2 x 3/16 inch wide, class 8, Optional heavy duty for abnormal brake usage

2шт.
