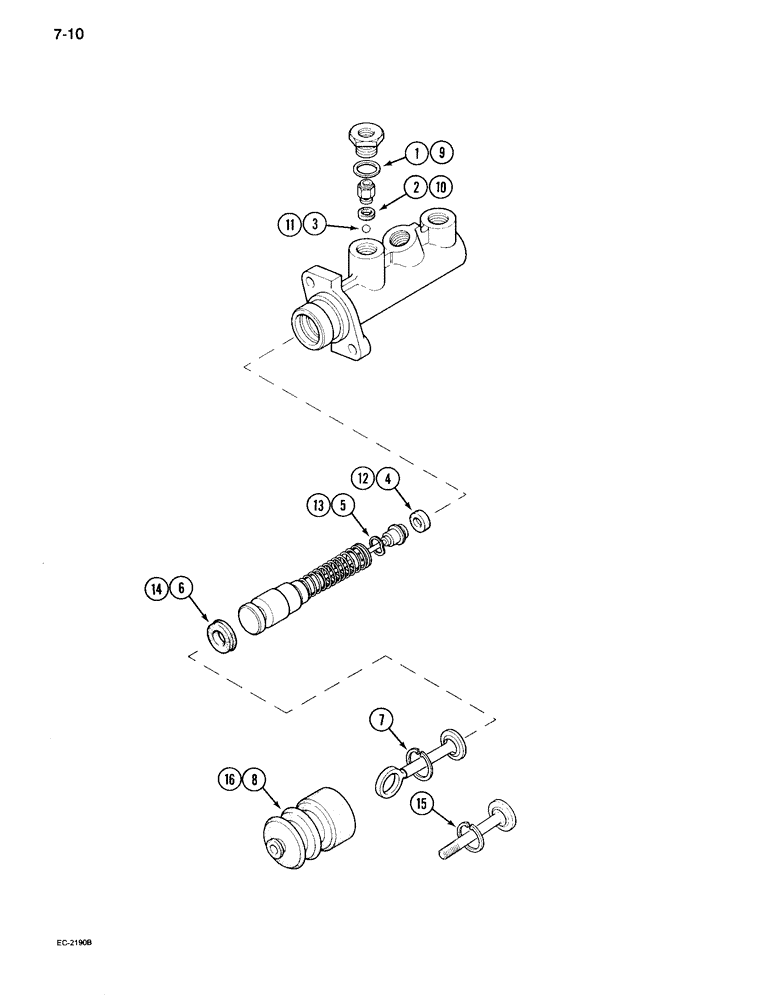

Запчасти Case IH 995 (7-10) - BRAKE MASTER CYLINDER (07) - BRAKES

1287843C91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Tractor without cab

2шт.

1

NSS

NOT SOLD SEPARAT

GASKET - flow valve, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow value, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - flow valve, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP - valve, Tractor without cab

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

8

1288242C1

BELLOWS

BOOT - dust, brake master cylinder, Tractor without cab

1шт.

1288228C1

REPAIR KIT

KIT - service, brake master cylinder, Includes: Ref. 1 thru 7, Tractor without cab

1шт.

102027A1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Tractor with cab

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - flow valve, Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - flow valve, Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

11

NSS

NOT SOLD SEPARAT

BALL - flow valve, Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve, Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring (Order kit 1288229C1), Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - gland (Order kit 1288229C1), Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

15

NSS

NOT SOLD SEPARAT

CIRCLIP - valve (Order kit 1288229C1), Tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

16

85109C1

BELLOWS

BOOT - dust, brake master cylinder, Tractor with cab

1шт.

1288229C1

KIT

KIT - service, brake master cylinder, Includes: Ref. 9 thru 15, Tractor with cab

1шт.
