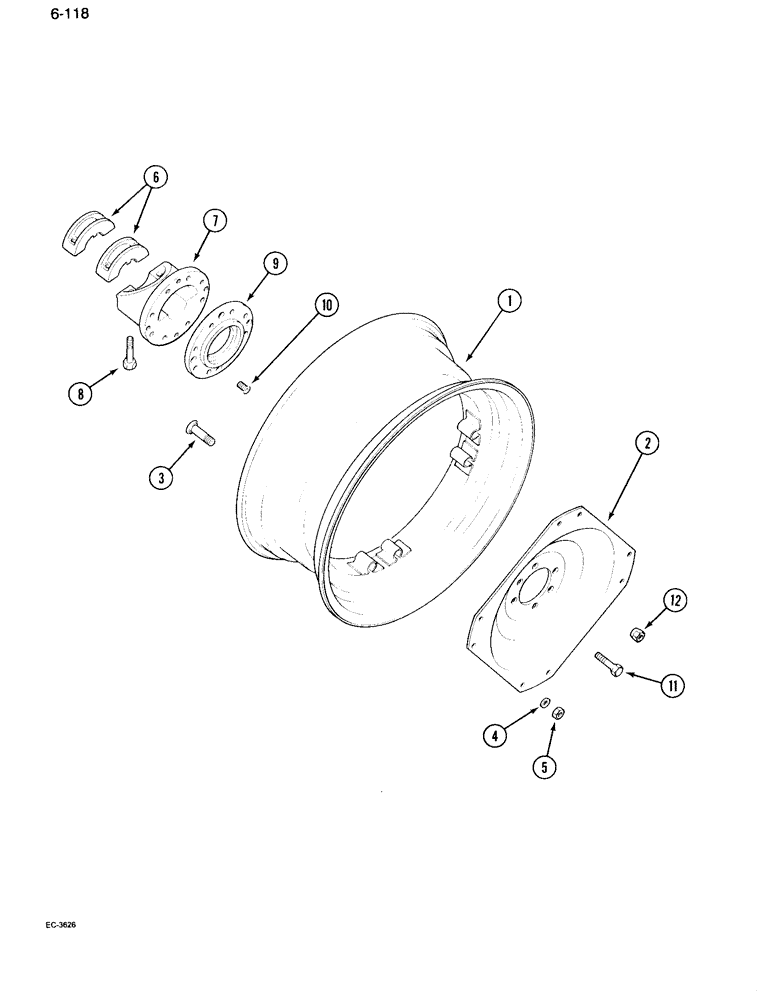

Запчасти Case IH 995 (6-118[A]) - REAR WHEELS, 34 INCH WHEELS, DW16-34 (06) - POWER TRAIN

1282781C92

WHEEL

- complete, DW16-34 (For 18.4-34 tire), , Includes: Ref. 1 - 5

2шт.

1

1282782C1

WHEEL

RIM - wheel, DW14-34

1шт.

2

1265239C1

DISC, WHEEL

DISC - wheel, 32 inch

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm, grade 8.8

8шт.

4

1332731C1

WASHER

8шт.

5

1332732C1

NUT

- hex, 16 mm, grade 8

8шт.

6

389539R1

CLAMP

- rear wheel hub, bar type axle

4шт.

7

530504R1

HUB

- rear wheel, clamp for bar type axle

2шт.

8

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, Hub clamp for bar type axle

8шт.

9

365957R3

FLANGE

- pilot, rear wheel hub, clamp for bar type axle

2шт.

10

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot flange mounting, Hub clamp for bar type axle

8шт.

11

365397R3

WHEEL BOLT

BOLT - rear wheel mounting, Hub clamp for bar type axle

16шт.

12

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.
