Запчасти Case IH 995 (1-22) - PICTORIAL INDEX, POWER STEERING SYSTEM, MFD TRACTOR WITHOUT CAB (00) - PICTORIAL INDEX

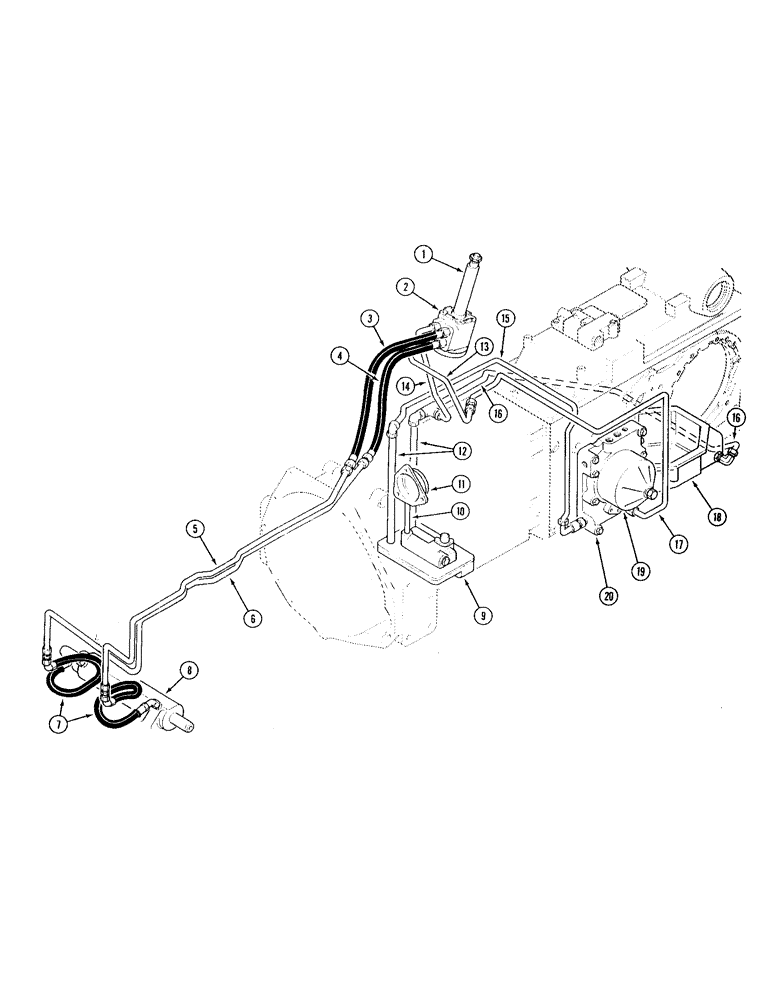

Схема запчастей Case IH 995 - (1-22) - PICTORIAL INDEX, POWER STEERING SYSTEM, MFD TRACTOR WITHOUT CAB (00) - PICTORIAL INDEX
17
18
14
8
2
15
12
1
11
20
9
16
6
3
13
16
19
10
5
7
4

Артикул

Название

Примечание

Количество

1

Steering Shaft Assembly, Page 5-3

1шт.

2

Integral Power Steering Valve, Pages 5-3, 25

1шт.

3

Left Turn Steering Hose, Page 5-11

1шт.

4

Right turn Steering Hose, Page 5-11

1шт.

5

Left Turn Steering Tube, Page 5-11

1шт.

6

Right Turn Steering Tube, Page 5-11

1шт.

7

Power Steering Cylinder Hoses, Page 5-11

1шт.

8

Power Steering Cylinder, Page 5-51

1шт.

9

Pressure Regulator Valve and Plate (Without 2 speed power shift), Pages 8-17, 25

1шт.

9

Pressure Regulator Valve and Plate (With 2 speed power shift), Pages 8-13, 23

1шт.

10

Oil Inlet Tube, Page 8-17

1шт.

11

IPTO and Clutch Retaining Cage (Without 2 speed power shift), Page 6-11

1шт.

11

IPTO and Clutch Retaining Cage (With 2 speed power shift), Page 6-21

1шт.

12

Oil Return Tubes, Page 8-17

1шт.

13

Forward Power Steering Pressure Tube, Page 5-17

1шт.

14

Forward Power Steering Return Tube, Page 5-17

1шт.

15

Rear Power Steering Return Tube, Page 5-17

1шт.

16

Transfer Gear Drop Box Tube, Page 5-17

1шт.

17

Rear Power Steering Pressure Tube, Page 5-17

1шт.

18

Transfer Gear Drop Box, Page 6-97

1шт.

19

Hydraulic Oil Filter, Page 8-3

1шт.

20

Multiple Control Valve, Pages 8-9, 11

1шт.

Выбрано товаров: 22
