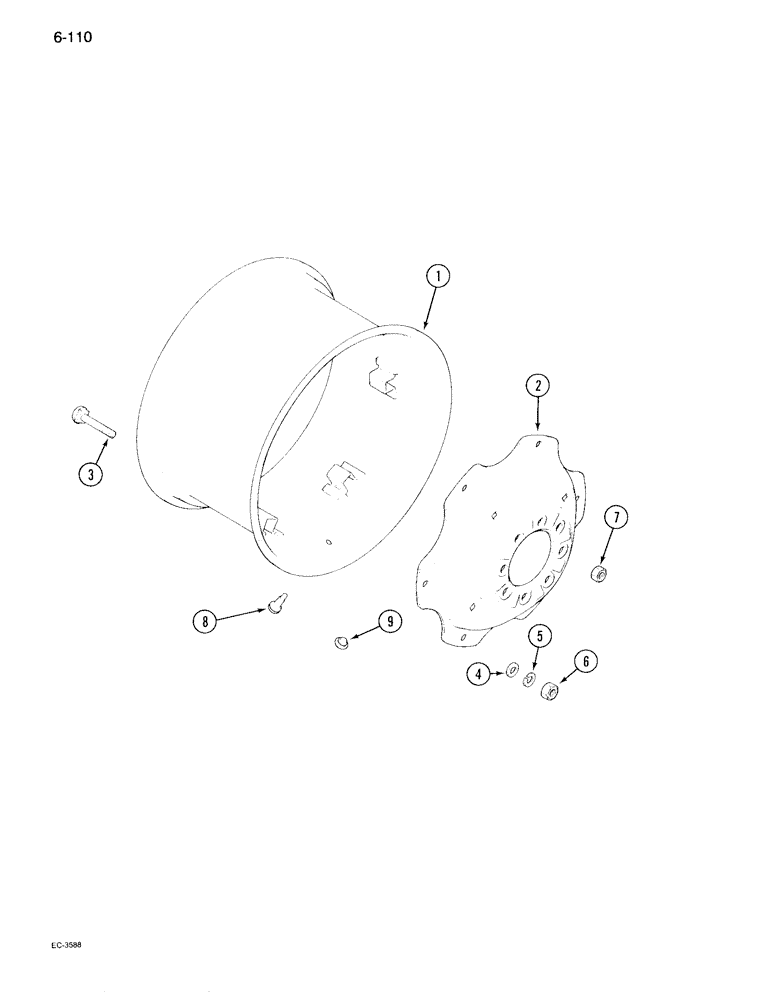

Запчасти Case IH 995 (6-110) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN

1

374807R92

RIM

- wheel, W10-24 (For 11.2 x 24 or 12.4 x 24 tires)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NC, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

1

374808R92

RIM

- wheel, W12 x 24 (For 13.6 x 24 or 14.9 x 24 tires) (Order D72304)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NC, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

2шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058)

2шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire), heavy duty

2шт.

2

1333150C1

DISC, WHEEL

DISC - 24 inch wheel, heavy duty

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, heavy duty

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, heavy duty

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, heavy duty

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, heavy duty

16шт.

9

383697R1

PLUG

- valve hole, heavy duty

1шт.

1

382268R91

RIM

- wheel, W7-24 (For 8.3 x 24 tire), dual rear

4шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1), dual rear

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, dual rear

24шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, dual rear

24шт.

5

492-21062

LOCK WASHER,5/8"

dual rear 5/8"

24шт.

6

352777R2

WHEEL NUT

- hex,5/8 inch NF, grade 8, dual rear

24шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), Dual rear 5/8"-18, G8

24шт.
