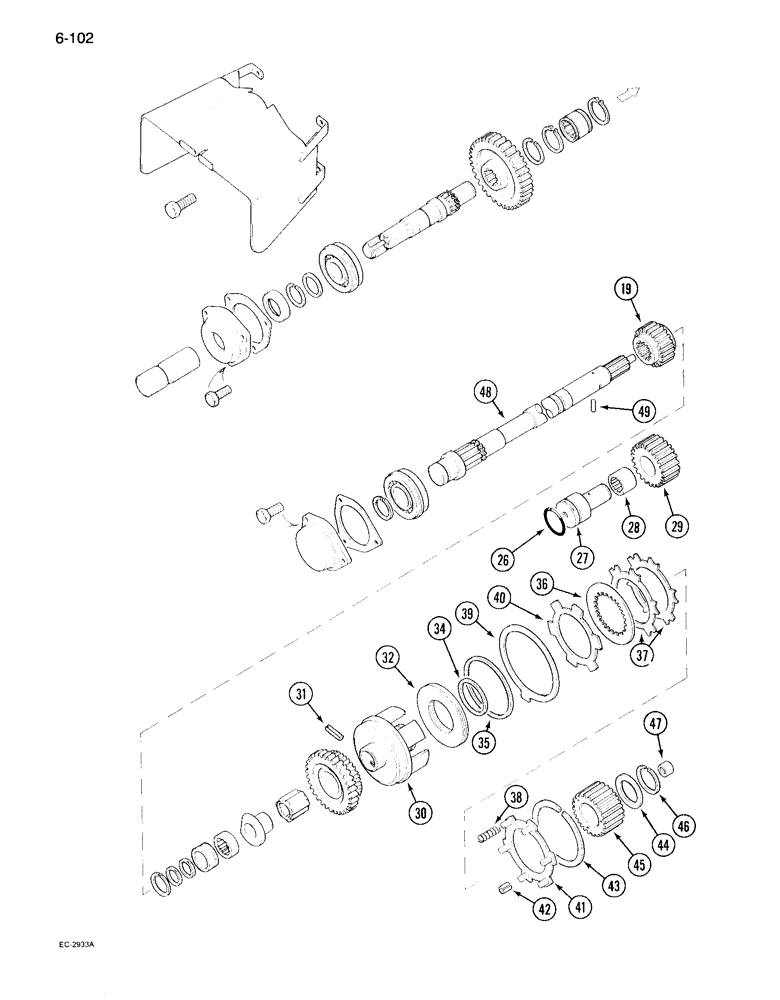

Запчасти Case IH 995 (6-102) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
26
238-5137
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
1шт.
27
401726R1
SHAFT
- IPTO idler
1шт.
28
570450R91
NEEDLE BEARING
- needle, idler shaft (Order A31213)
1шт.
29
401727R1
PINION
GEAR - idler, 24 teeth
1шт.
30
1335402C1
CUP
- IPTO clutch (2WD)
1шт.
30
82609C1
CUP
- IPTO clutch (MFD)
1шт.
31
617941R1
PIN,5/16" x 2", Coiled
1шт.
32
401722R1
PISTON
- clutch
1шт.
34
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
- piston, inner
1шт.
Part of clutch plate service kit P/N 3125257R91
1шт.
35
401724R1
SEAL,0.551" ID x 0.07" Width
O-RING - piston, outer
1шт.
Part of clutch plate service kit P/N 3125257R91
1шт.
36
NSS
NOT SOLD SEPARAT
PLATE - clutch driven
5шт.
Part of clutch plate service kit P/N 3125257R91
1шт.
37
NSS
NOT SOLD SEPARAT
PLATE - clutch separator
8шт.
Part of clutch plate service kit P/N 3125257R91
1шт.
38
66182C1
SPRING
- piston return
6шт.
Part of clutch plate service kit P/N 3125257R91
1шт.
39
82349C2
RING
- IPTO brake
1шт.
40
66185C1
CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk
- piston return
1шт.
41
66186C92
PLATE ASSY.
PLATE - clutch backing, Includes: Ref. 42
1шт.
42
19555R1
PIN,5/16" x 1", Coiled
6шт.
43
401720R1
CIRCLIP
RING - retaining, backing plate
1шт.
44
401713R1
THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk
WASHER - thrust, clutch hub
1шт.
45
66183C2
HUB ASSY.,45T
HUB ASSEMBLY - clutch
1шт.
46
401756R1
SNAP RING,#206, 1.936", Ext
RING - retaining, external, 1.936 inch (Order A33575)
1шт.
47
82351C91
NEEDLE BEARING
BEARING - needle, IPTO driven shaft
1шт.
48
99463C1
SHAFT
ASSEMBLY - driving, IPTO (Single speed), Includes: Ref. 49
1шт.
48
99462C1
SHAFT
ASSEMBLY - output, 1000 rpm, 21 spline (Dual speed), Includes: Ref. 49
1шт.
49
932169R1
LOCK PIN,M4 x 10, Slotted
Spring M4 x 10, Slotted
1шт.
3125257R91
PACKAGE
KIT - service, clutch plate, Includes: Ref. 34, 35, 36, 37 and 38
1шт.
Выбрано товаров: 31
