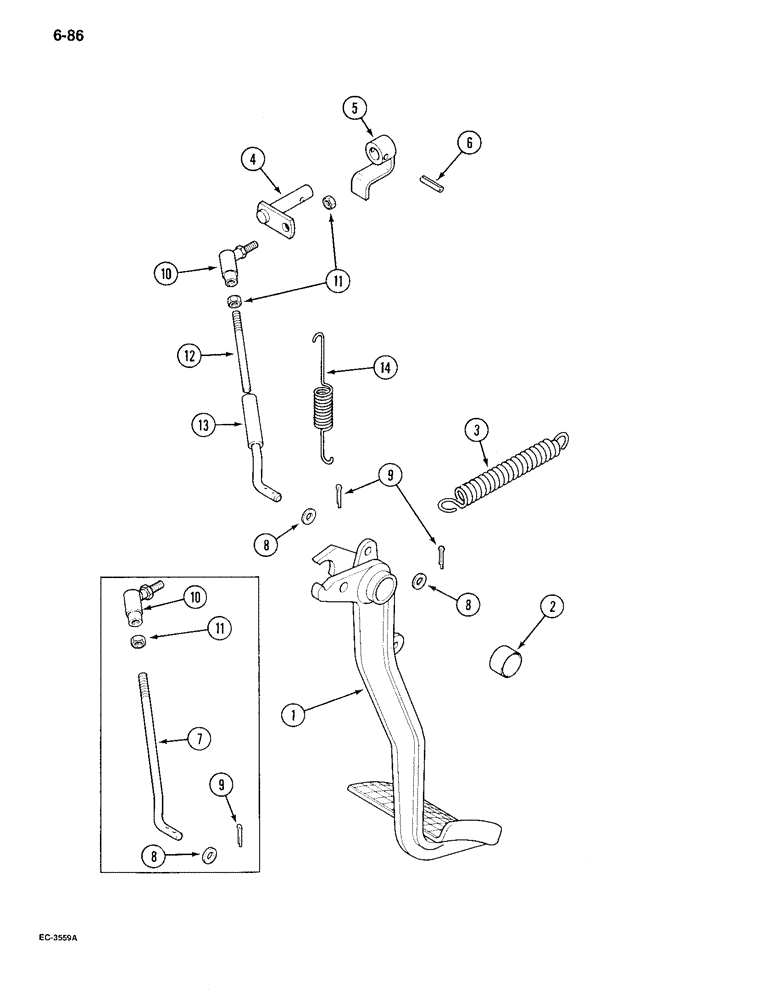

Запчасти Case IH 995 (6-086) - FORWARD AND REVERSE LOCKOUT CONTROLS, TRACTOR WITH CAB (06) - POWER TRAIN

1

1343120C2

PEDAL ASSY.

PEDAL ASSEMBLY - clutch, with bushing, Includes: Ref. 2

1шт.

2

3226548R1

BUSHING

- clutch pedal

1шт.

3

3234643R1

SPRING

- tension (Order 2783696R1)

1шт.

4

1985224C2

SHAFT

ASSEMBLY - lockout pivot

1шт.

5

1985227C1

ARM

ASSEMBLY - lockout pivot

1шт.

6

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

7

1985229C2

STEM

ROD - lockout (Prior to P.I.N. JJE0026329)

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

442720

BALL JOINT

JOINT - ball, 5/16 inch NF, type C (Order A19105)

1шт.

10

310673R91

BALL JOINT

JOINT - ball, 5/16 inch NF, type G, Serial Range: (Optional-A19105)

1шт.

11

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

2шт.

12

104224A1

STEM

ROD - lockout (P.I.N. JJE0026329 and After)

1шт.

13

104277A1

THREADED ROD

ROD ASSEMBLY - lockout (P.I.N. JJE0026329 and After)

1шт.

14

104746A1

SPRING

- lockout (P.I.N. JJE0026329 and After)

1шт.
