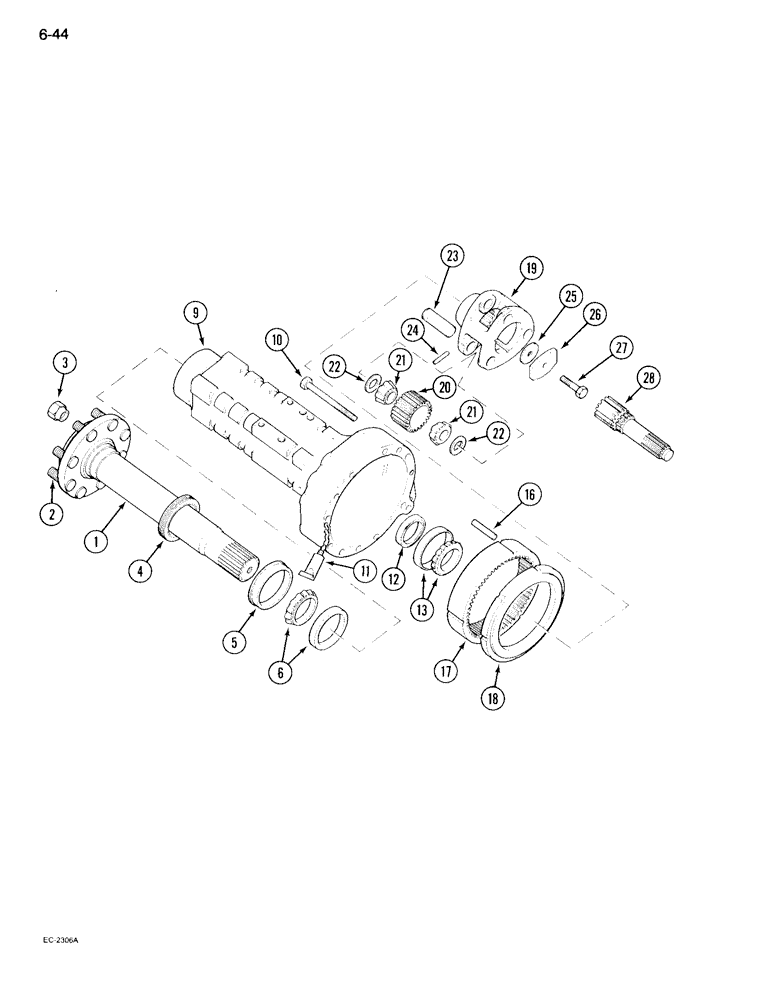

Запчасти Case IH 995 (6-044) - REAR AXLE AND CARRIER (06) - POWER TRAIN

1

527353R11

AXLE, REAR

AXLE ASSEMBLY - rear (Bar type) (Not illustrated), Includes: Ref. 2

2шт.

Ref #1 - 535862R1 Wear Sleeve on Axle 527353R11 (not shown)

1шт.

1

404345R13

HALF SHAFT

AXLE ASSEMBLY - rear (Flange type), Includes: Ref. 2

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - rear wheel mounting

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel mounting

16шт.

4

105471C1

OIL SEAL

SEAL - oil, rear axle outer

2шт.

5

399796R1

SLEEVE

- wear

2шт.

6

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

BEARING ASSEMBLY - roller, rear axle outer

2шт.

9

93939C1

AXLE CARRIER

CARRIER - rear axle, left (Flange type axle)

1шт.

9

93941C1

AXLE CARRIER

CARRIER - rear axle, left (Bar type axle)

1шт.

9

93940C1

AXLE CARRIER

CARRIER - rear axle, right (Flange type axle)

1шт.

9

93942C1

AXLE CARRIER

CARRIER - rear axle, right (Bar type axle)

1шт.

10

26-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 8

- hex, 5/8 NC x 4-1/4 inch, grade 8 (Flange type axle)

22шт.

10

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8 (Bar type axle)

20шт.

10

326-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

(Bar type axle) Hex, 5/8"-11 x 6 1/4", G8

2шт.

11

B17501

LOCTITE

SEALANT - Gasket Maker No. 515, 6 ml tube

1шт.

12

399798R91

OIL SEAL

SEAL - oil, rear axle inner

2шт.

13

972467R91

BEARING ASSY

ASSEMBLY - roller, rear axle inner

2шт.

16

529686R1

DOWEL

PIN - dowel, 3/8 x 2-1/4 inch

6шт.

17

535317R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

18

114620C1

RING,260mm OD

- brake outer disc

2шт.

18

1502369C1

RING

- brake outer disc, Serial Range: (Optional-114620C1)

2шт.

19

404344R3

PINION CARRIER

CARRIER - planet gear (Prior to P.I.N. JJE0014508)

2шт.

19

1971154C1

PINION CARRIER

CARRIER - planet gear (P.I.N. JJE0014508 and After)

2шт.

20

66128C2

PINION

GEAR - planet, 25 teeth (Prior to P.I.N. JJE0014508)

6шт.

20

1971155C1

PINION

GEAR - planet, 25 teeth (P.I.N. JJE0014508 and After)

6шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - cone, planet gear (Prior to P.I.N. JJE0014508)

12шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone (P.I.N. JJE0014508 and After)

12шт.

65421C2

SHIM KIT

KIT - service, planet gear shim, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

3шт.

23

399812R1

SHAFT

PIN - planet shaft (Prior to P.I.N. JJE0014508)

6шт.

23

1971156C1

SHAFT

PIN - planet shaft (P.I.N. JJE0014508 and After)

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

65422C1

SHIM KIT

KIT - service, rear axle retainer shims, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.0299 inch

2шт.

26

399748R1

SPACER

- planet carrier

2шт.

27

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

28

404343R1

SHAFT

- planetary drive, right

1шт.

28

404342R1

SHAFT

- planetary drive, left

1шт.
