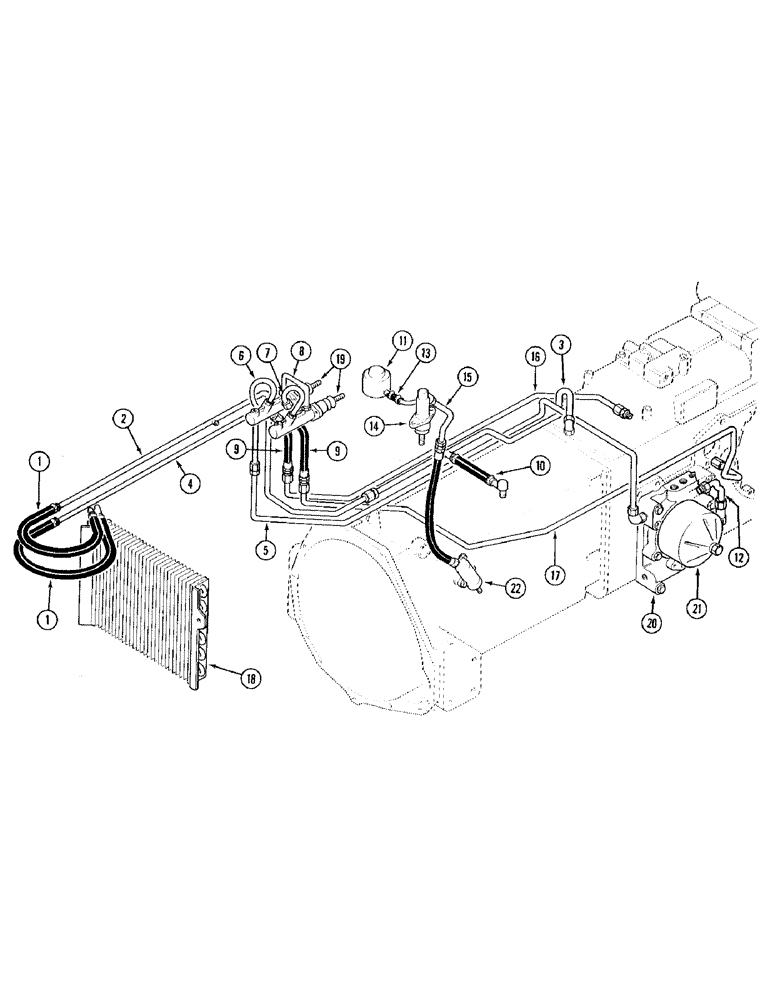

Запчасти Case IH 995 (1-14) - PICTORIAL INDEX, TRACTOR WITH CAB, OIL COOLER AND BRAKE TUBES (00) - PICTORIAL INDEX

1

Oil Cooler Inlet and Outlet Hoses, Page 8-5

1шт.

2

Oil Cooler Front Return tube, Page 8-5

1шт.

3

Oil Cooler Rear Return Tube, Page 8-5

1шт.

4

Oil Cooler Front Supply Tube, Page 8-5

1шт.

5

Oil cooler Rear Supply Tube, Page 8-5

1шт.

6

left cylinder Outlet Tube, Page 7-9

1шт.

7

Right Cylinder Outlet Tube, Page 7-9

1шт.

8

Master cylinder Equalizer Tube, Page 7-9

1шт.

9

Brake High Pressure Hoses, Page 7-9

1шт.

10

Lubrication Hose, Page 8-5

1шт.

11

Clutch Oil Reservoir, Page 6-49

1шт.

12

Multiple Control Valve By-Pass Tube, Page 8-9

1шт.

13

Reservoir to Clutch Master cylinder Tube, Page 6-49

1шт.

14

Clutch Master Cylinder, Pages 6-49, 53

1шт.

15

Clutch Master cylinder to Slave Cylinder Tube, Page 6-49

1шт.

16

Right Brake Tube, Page 7-9

1шт.

17

Left Brake Tube, Page 7-9

1шт.

18

Oil Cooler, Page 8-5

1шт.

19

Brake Master Cylinders, Pages 7-7, 9, 11

1шт.

20

Hydraulic Oil Filter, Page 8-3

1шт.

21

Multiple Control Valve, Pages 8-9, 11

1шт.

22

Clutch Slave Cylinder, Pages 6-51, 53

1шт.
