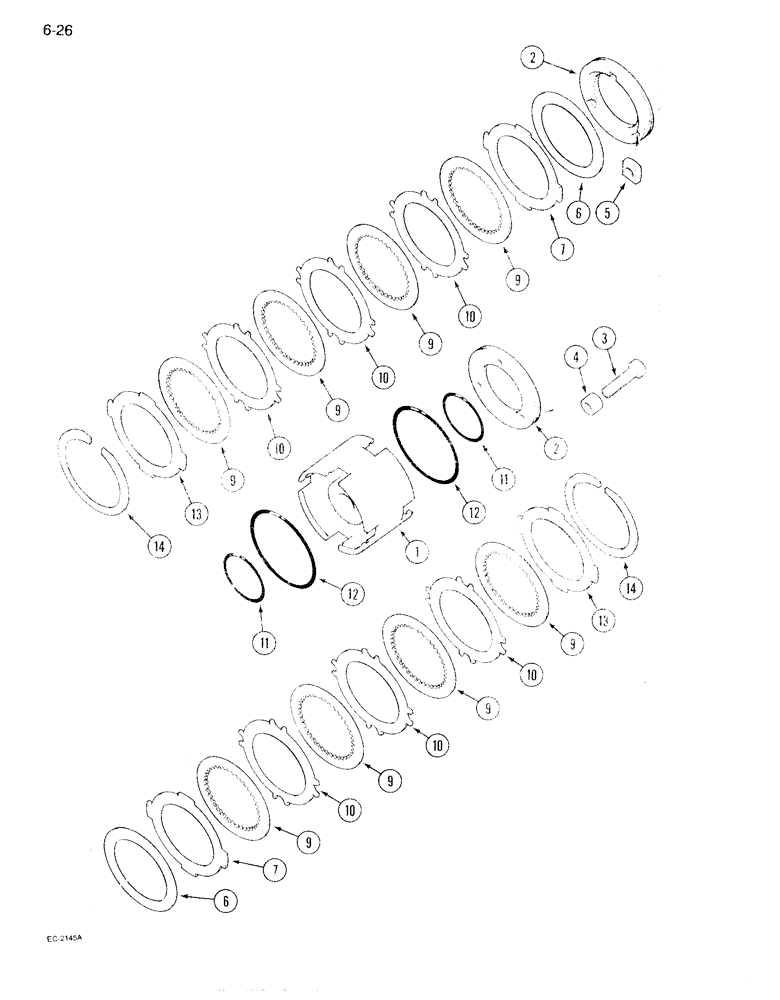

Запчасти Case IH 995 (6-026) - SPEED TRANSMISSION, FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CUP - direct drive clutch (See Figure 6-022)

1шт.

2

70017C1

PISTON

- direct drive clutch

2шт.

3

1536134C1

HEX SOC SCREW,1/4" - 28 x 1-1/32", Gr 5

BOLT - forward/reverse piston return

3шт.

4

527769R2

SPACER

- piston

3шт.

5

65240C1

SQUARE NUT

- square, 1/4 inch NF

3шт.

70039C1

SHIM KIT

KIT - service, piston return shims (Order 1502338C91), Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SHIM - 0.014 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - 0.024 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - 0.036 inch

2шт.

7

402572R1

PLATE

- piston backing

2шт.

534937R92

PACKAGE, REPAIR

KIT - service, forward/reverse clutch plate, Includes: Ref. 9 - 12

1шт.

9

3125322R2

DISC

PLATE - clutch driven

8шт.

10

401717R1

PLATE

- clutch separator

6шт.

11

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner

2шт.

12

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

2шт.

13

70016C1

PLATE

- clutch backing

2шт.

14

401720R1

CIRCLIP

RING - retaining, backing plate

2шт.
