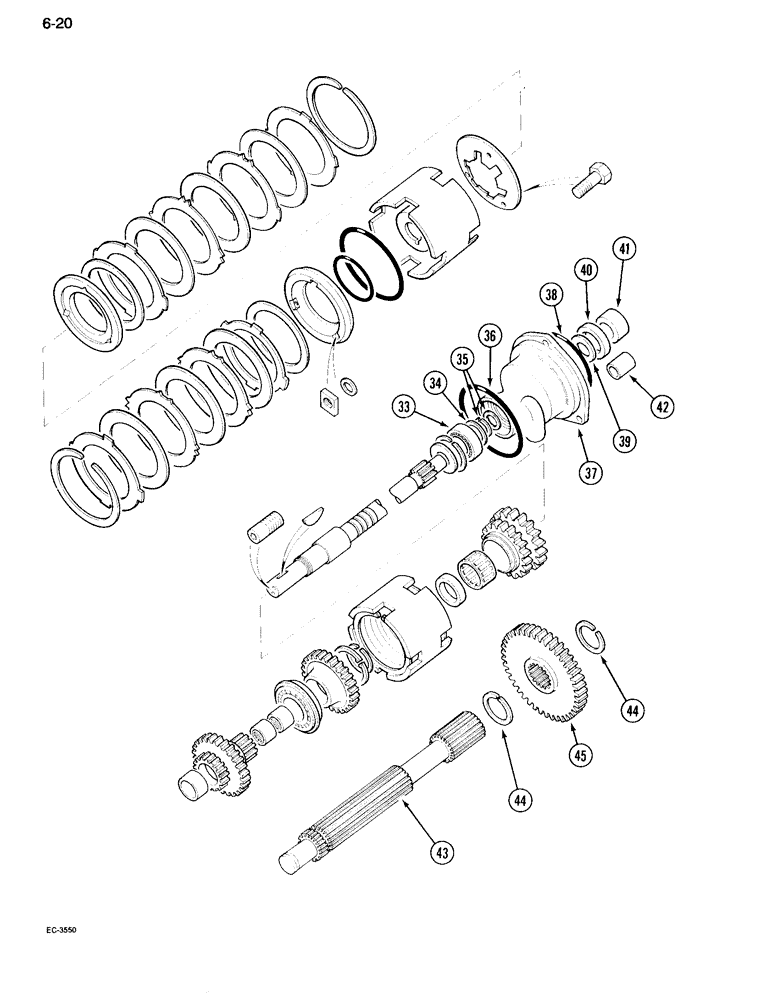

Запчасти Case IH 995 (6-020) - SPEED TRANSMISSION, TWO SPEED POWER SHIFT ATTACHMENT (06) - POWER TRAIN

33

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball, clutch shaft

1шт.

33

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING - ball (Optional to ST205A)

1шт.

34

A21619

CIRCLIP

RING - retaining

1шт.

35

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

- clutch shaft piston

2шт.

36

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

37

1342861C1

BALL RACE

CAGE ASSEMBLY - IPTO and clutch cup retainer

1шт.

1277488C2

SEAL KIT

KIT - service, seals, Includes: Ref. 38 - 42

1шт.

38

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

41

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve (Order 108982C1)

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - installation

2шт.

43

404104R3

SHAFT

- counter

1шт.

44

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining, external, 1.759 inch

2шт.

45

404105R1

PINION

GEAR - driven, 42 teeth

1шт.
