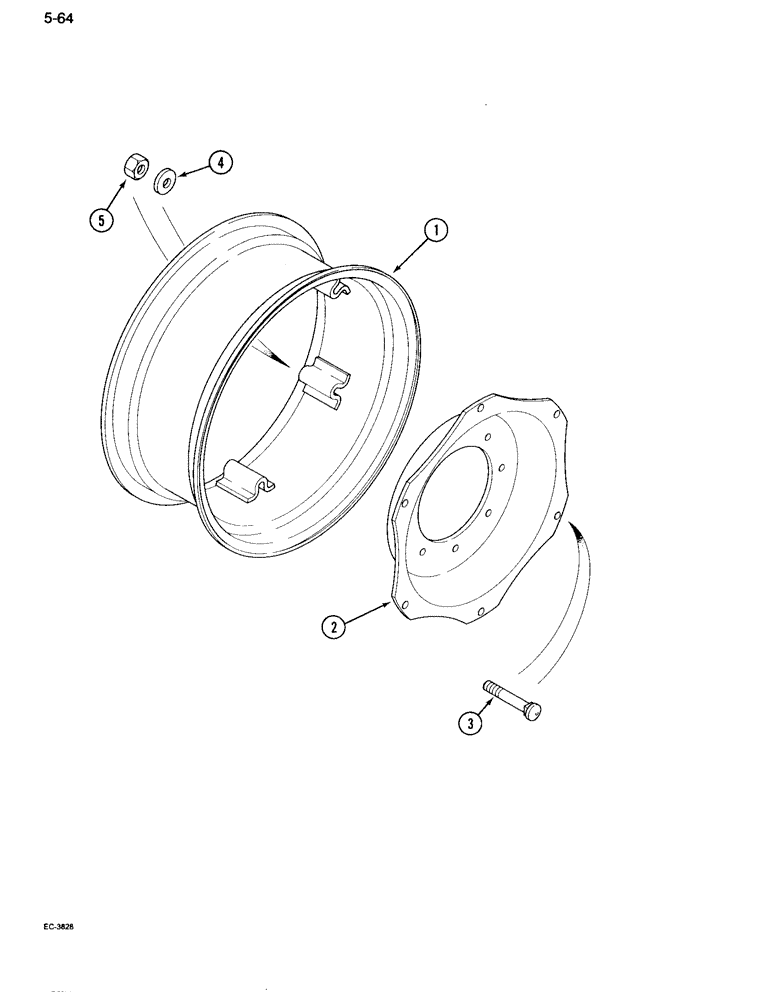

Запчасти Case IH 995 (5-64) - FRONT WHEELS, "CAN - AM" (05) - STEERING

1

1985675C1

RIM

- adjustable, W7-24 (For 8.3 x 24 or 9.5 x 24 tires)

2шт.

2

1985673C1

DISC, WHEEL

DISC - 24 inch Wheel

2шт.

3

1985693C1

BOLT

- carriage, 16 mm - 2.00 x 80 mm

12шт.

4

1985696C1

WASHER

_ flat, 0.656 inch ID

12шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

12шт.

1

89742C1

RIM

- adjustable, W8-24

2шт.

2

89743C1

DISC, WHEEL

DISC - 24 inch Wheel

2шт.

3

89744C2

BOLT

BOLT - carriage, 16 x 120 mm

12шт.

4

89746C2

WASHER

_ flat

12шт.

5

89745C2

NUT

- hex, 16 mm

12шт.

1

89774C1

RIM

- adjustable, W10-24

2шт.

2

89743C1

DISC, WHEEL

DISC - 24 inch Wheel

2шт.

3

89744C2

BOLT

BOLT - carriage, 16 x 120 mm

12шт.

4

89746C2

WASHER

_ flat

12шт.

5

89745C2

NUT

- hex, 16 mm

12шт.

1

1985672C1

RIM

- adjustable, W10-24 (For 11.2 x 24 or 12.4 x 24 tires)

2шт.

2

1985673C1

DISC, WHEEL

DISC - 24 inch Wheel

2шт.

3

1985693C1

BOLT

- carriage, 16 mm - 2.00 x 80 mm

12шт.

4

1985696C1

WASHER

_ flat, 0.656 inch ID

12шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

12шт.

1

1985685C1

RIM

- adjustable, W10-28 (For 11.2 x 28 or 13.6 x 28 tires)

2шт.

2

1985686C1

DISC, WHEEL

DISC - 28 inch Wheel

2шт.

3

1985693C1

BOLT

- carriage, 16 mm - 2.00 x 80 mm

12шт.

4

1985696C1

WASHER

_ flat, 0.656 inch ID

12шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

12шт.

1

374808R92

RIM

- adjustable, W12-24 (For 13.6 x 24 or 14.9 x 24 tires) (Order D72304)

2шт.

2

1985673C1

DISC, WHEEL

DISC - 24 inch Wheel

2шт.

3

1985693C1

BOLT

- carriage, 16 mm - 2.00 x 80 mm

12шт.

4

1985696C1

WASHER

_ flat, 0.656 inch ID

12шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

12шт.
