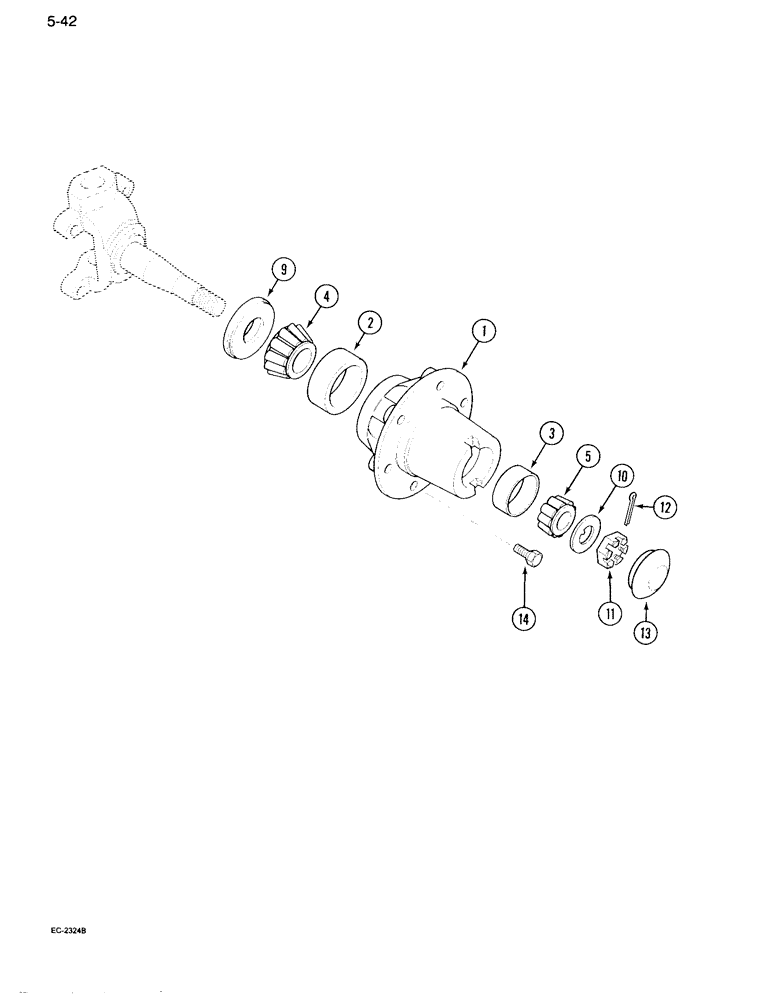

Запчасти Case IH 995 (5-42) - WHEEL HUB, SWEPT BACK CAST FRONT AXLE (05) - STEERING

1

378401R21

HUB

ASSEMBLY - front wheel, Includes: Ref. 2 and 3

2шт.

2

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

BEARING - cup, inner

1шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

3

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

BEARING - cup, outer

1шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

4

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

BEARING - cone, inner

2шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

5

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

BEARING - cone, outer

2шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

9

378402R11

RETAINER

- felt, hub

2шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

9

97739HX

RING

RETAINER - felt, Serial Range: (Optional-378402R11)

2шт.

10

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

- adjusting nut

2шт.

Part of front wheel bearings service kit P/N 65990C91

1шт.

11

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

12

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

13

378814R1

CAP

- hub front wheel

2шт.

14

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel mounting

2шт.

65990C91

PACKAGE

KIT - service, front wheel bearings, Includes: Ref. 2, 3, 4, 5 , 9 and 10

1шт.
