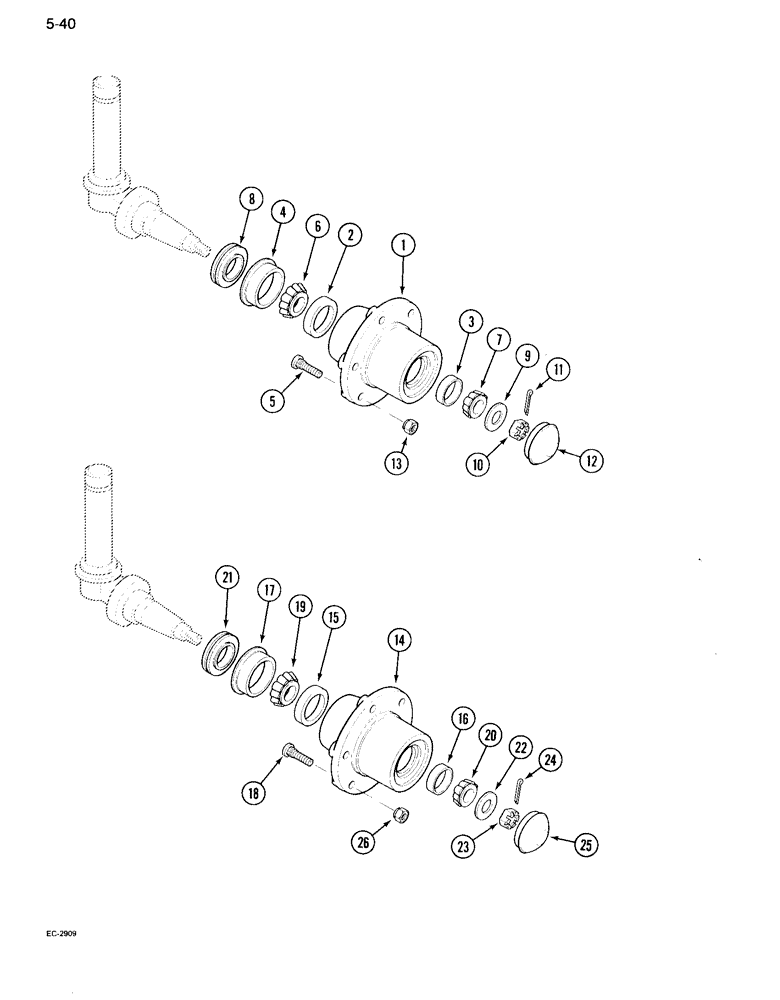

Запчасти Case IH 995 (5-40) - WHEEL HUB, ADJUSTABLE FRONT AXLES (05) - STEERING

1

67527C92

HUB

ASSEMBLY - front wheel, Straight Front Axle, Includes: Ref. 1 - 5

2шт.

2

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING - cup, inner

1шт.

3

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING - cup, outer

1шт.

3

538491R1

BEARING, CUP

Outer, Serial Range: (Optional-536054R1)

1шт.

4

67328C1

SEALING RING

RING - wear

1шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

6шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - cone, inner 1-25/32 ID

2шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING - cone, outer

2шт.

8

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- dust, front wheel

2шт.

9

105759C1

WASHER

- retaining, outer bearing

2шт.

10

1332751C1

SLOTTED NUT

- hex slotted, 3/4 inch NF

2шт.

11

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), 5/32" x 1 3/8"

2шт.

12

612884R1

HUB CAP

CAP - hub, front wheel

2шт.

13

483879R2

SPECIAL NUT

- wheel retaining

12шт.

14

406294R21

HUB ASSY.

HUB ASSEMBLY - front wheel, swept back axle, Includes: Ref. 15 - 18

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

16

371883R1

BEARING CUP

Outer

1шт.

17

406295R2

RING

- wear

1шт.

18

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

6шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone, inner

2шт.

19

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

BEARING - cone, inner (Optional to 618023R91)

2шт.

20

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

21

530104R91

SEAL

SEAL - dust, front wheel

2шт.

22

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- hardened

2шт.

23

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted,3/4 inch NF

2шт.

24

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), 5/32" x 1 3/8"

2шт.

25

612884R1

HUB CAP

CAP - hub, front wheel

2шт.

26

483879R2

SPECIAL NUT

- wheel retaining

12шт.
