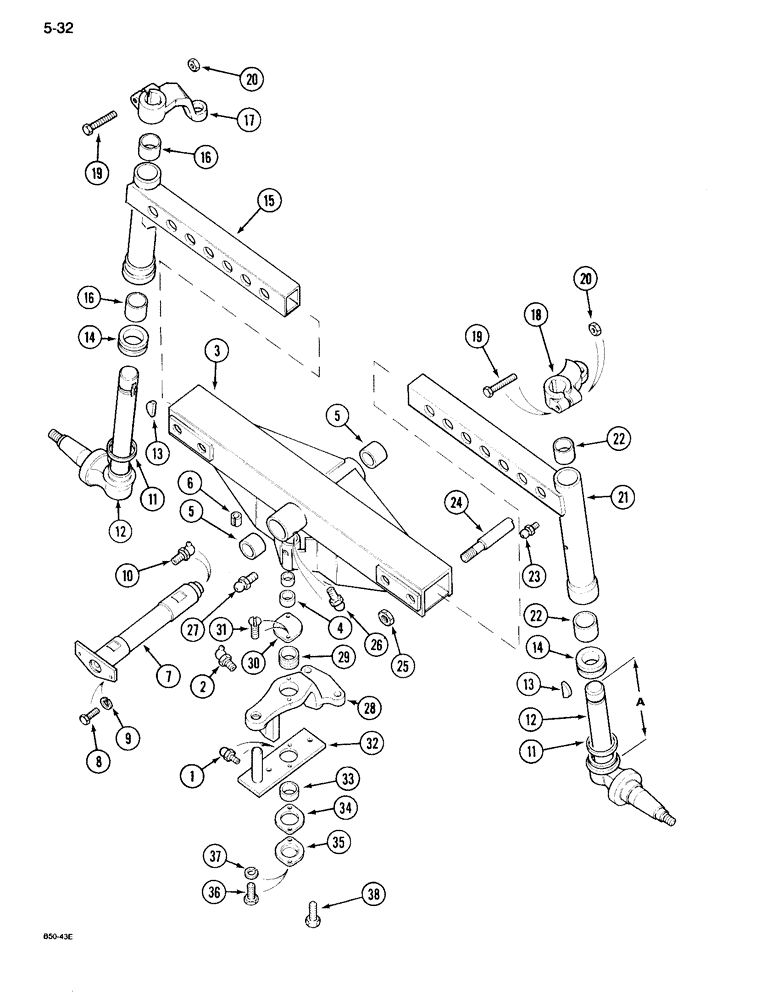

Запчасти Case IH 995 (5-32) - ADJUSTABLE STRAIGHT FRONT AXLE, 52 TO 77 INCH TRACK (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

3121242R92

CENTER AXLE

AXLE ASSEMBLY - front, centre section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

99897C1

SHAFT

ASSEMBLY - front axle pivot (Front mounted hydraulic pump)

1шт.

7

3121254R1

SHAFT ASSY.

SHAFT ASSEMBLY - front axle pivot

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PTF

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

12

3121261R91

KNUCKLE,RH

ASSEMBLY - steering (Dimension A: 11.22 inch), Includes: Ref. 13

2шт.

12

3121270R91

KNUCKLE

ASSEMBLY - steering (Dimension A: 8.33 inch), Includes: Ref. 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

405831R91

BEARING

- thrust, steering knuckle (Order 185106C91)

1шт.

15

3121257R91

EXTENSION ASSY.

EXTENSION - front axle, right (Used with knuckle 3121261R91), Includes: Ref. 16

1шт.

15

3121268R91

EXTENSION ASSY.

EXTENSION - front axle, right (Used with knuckle 3121270R91), Includes: Ref. 16

1шт.

16

376099R1

BUSHING

- front axle extension (Order 358958R2)

2шт.

17

3121264R1

ARM

- steering knuckle, right

1шт.

18

3121263R1

ARM

- steering knuckle, left

1шт.

19

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, grade 8

2шт.

20

329-108

NUT,1/2"-13, G8

2шт.

21

3121256R91

EXTENSION ASSY.

EXTENSION - front axle, left (Used with knuckle 3121261R91), Includes: Ref. 22

1шт.

21

3121267R91

EXTENSION ASSY.

EXTENSION - front axle, left (Used with knuckle 3121270R91), Includes: Ref. 22

1шт.

22

376099R1

BUSHING

- front axle extension (Order 358958R2)

2шт.

23

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch (High spindle axle)

2шт.

23

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch (Low spindle axle)

2шт.

24

3121252R1

BOLT,3/4" - 16 x 1 27/32"

- shoulder, axle extension

4шт.

25

3121253R1

SPECIAL NUT

- front axle

4шт.

26

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C94

STEERING ARM

ARM ASSEMBLY - centre, power steering, Includes: Ref. 29 - 31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

1шт.

30

1536890C1

LARGE PLATE

PLATE - cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

BAR ASSEMBLY - power steering cylinder, Includes: Ref. 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

34

1536919C1

GASKET

- cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE - cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

- hex flange, 1/4 NC x 5/8 inch

2шт.

37

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
