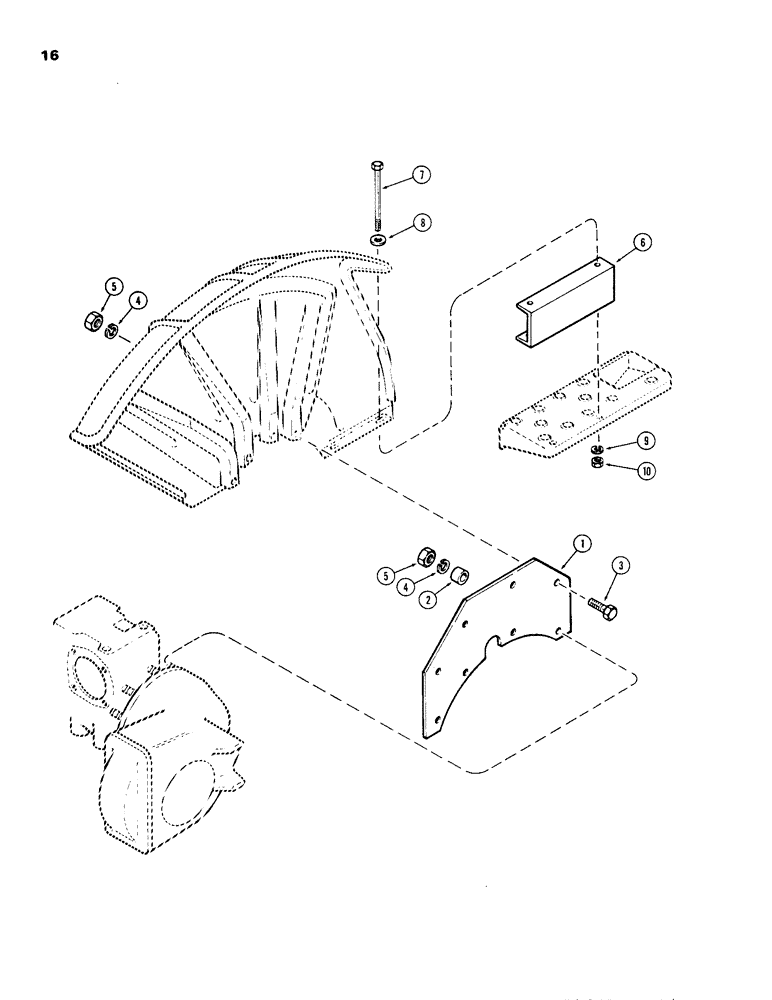

Запчасти Case IH 990 (16) - FENDER SUPPORTS, 990 ROW CROP TRACTOR (09) - CHASSIS

1

A147299

SUPPORT fender to rear axle housing

2шт.

2

A147374

SPACER support

8шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

6

A147599

SUPPORT, Serial Range: fender-platform

2шт.

7

113-18

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

hex, 1/4 x 3-3/4" NC

4шт.

8

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16", 7.9 x 19.1 x 1.6 mm

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
