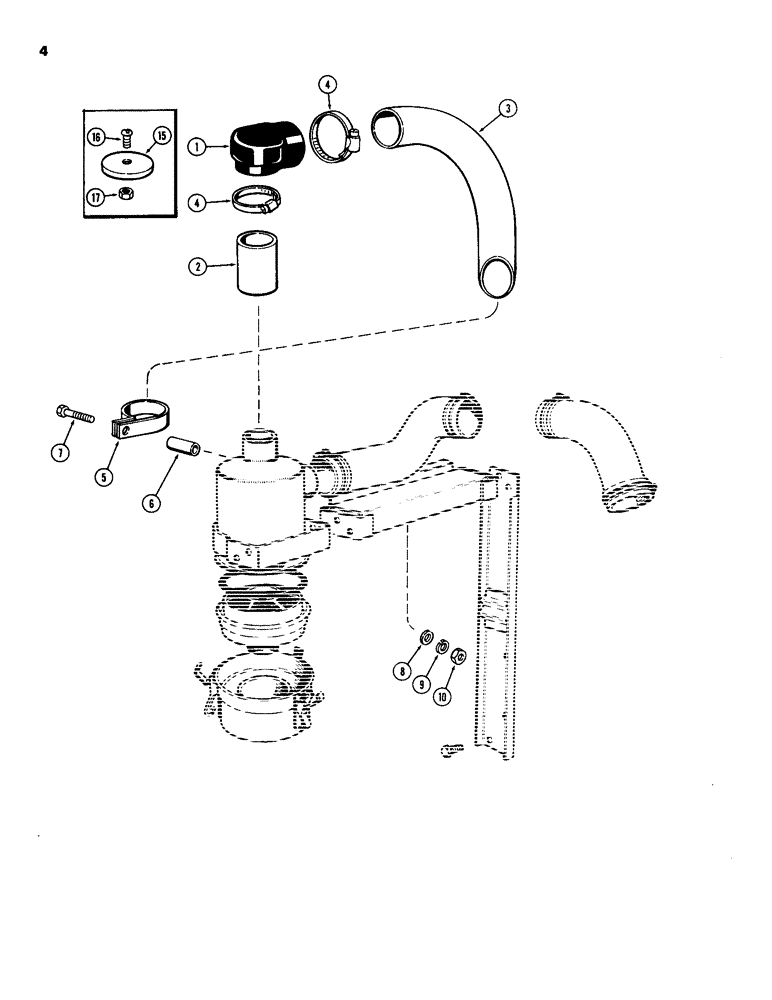

Запчасти Case IH 990 (04) - AIR CLEANER, 990 ORCHARD AND GROVE (02) - ENGINE

1

A143787

ELBOW air cleaner inlet

1шт.

2

A145155

SPACER air cleaner inlet elbow

1шт.

3

A143940

TUBE air cleaner inlet

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46.04 to 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

5

A8593

CLAMP

air cleaner tube

1шт.

6

A145046

SPACER air cleaner tube

1шт.

7

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

8

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64", 9.5 x 22.2 x 2 mm

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A58007

PLUG

COVER hood hole

2шт.

16

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

truss head Phillips, 1/4 x 1" NC

1шт.

17

86625061

NUT,1/4"-20, GB

NUT Esna lock, 1/4" NC

1шт.
