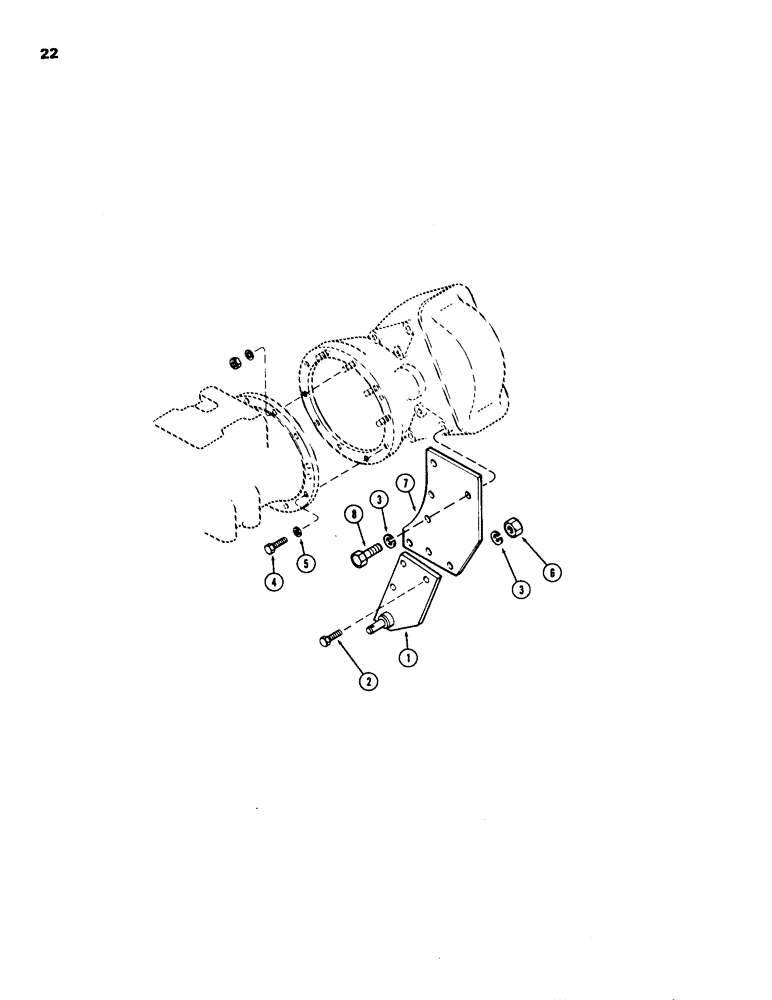

Запчасти Case IH 990 (22) - STABILIZER BRACKET, 990 ORCHARD TRACTOR (09) - CHASSIS

1

A145405

BRACKET ASSEMBLY stabilizer, RH

1шт.

1

A145406

WASHER

BRACKET ASSEMBLY stabilizer, LH

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

4

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

hex, reduction housing to axle housing, 1/2 x 1-3/4" NC

12шт.

5

A150672

WASHER

reduction housing stud

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

A147405

SUPPORT

stabilizer bracket

2шт.

8

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

6шт.
