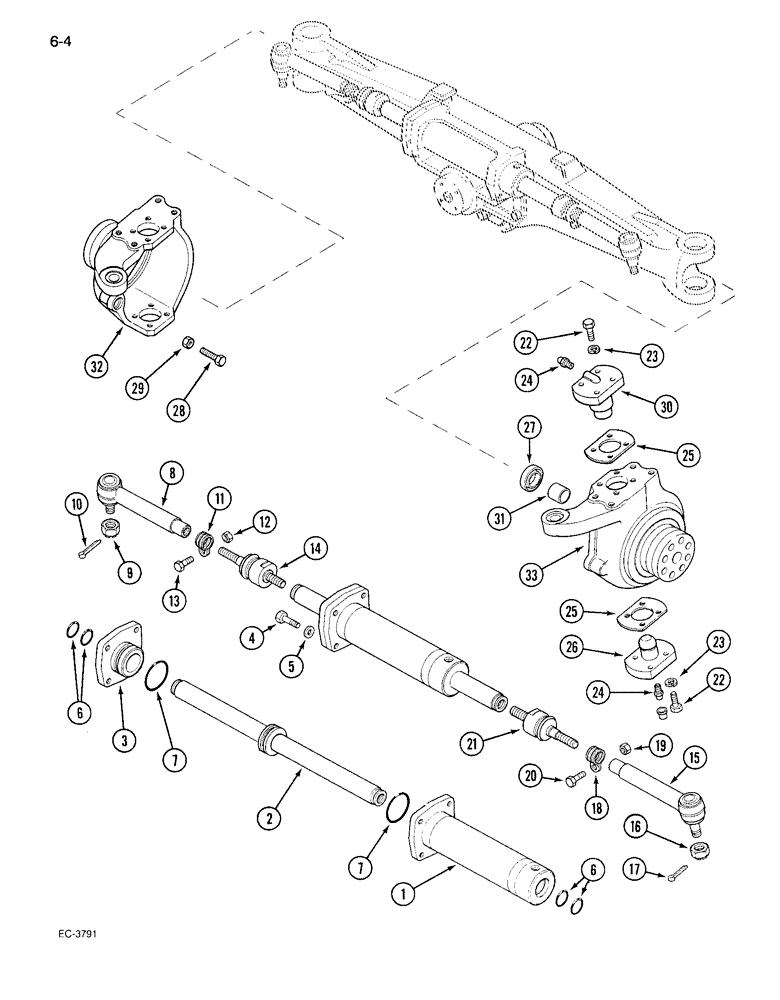

Запчасти Case IH 95-SERIES (6-04) - STEERING CYLINDER AND TIE RODS, MFD AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1537617C1
STEERING CYLINDER
CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 7
1шт.
1537617C1R
REMAN-HYD CYLINDER
95-SERIES CARRARO TRACTOR AXLE, CYLINDER ASSEMBLY, steering
1шт.
1537617C1C
CORE-HYD CYLINDER
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
CYLINDER - order 153761C1
1шт.
2
NSS
NOT SOLD SEPARAT
ROD - order 1537617C1
1шт.
3
1537616C1
WHEEL CYLINDER
HEAD - cylinder
1шт.
4
814-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
4шт.
5
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
1537615C1
SEAL KIT
PACKAGE - seals, Includes: Ref. 6 and 7
1шт.
6
NSS
NOT SOLD SEPARAT
O-RING
4шт.
7
NSS
NOT SOLD SEPARAT
SEAL
4шт.
1537619C1
ARM
ROD ASSY - left hand thread, Includes: Ref. 8 - 14
1шт.
8
1537611C1
BALL JOINT
BALLJOINT - left hand thread
1шт.
9
A48163
NUT
1шт.
10
1966613C1
PIN, SPLIT (COTTER)
PIN - split, D4 x 35 mm
1шт.
11
1537613C1
CLAMP
1шт.
12
1966126C1
LOCK NUT
1шт.
13
1537614C1
SCREW
1шт.
14
1966127C1
BALL JOINT
BALLJOINT - right hand thread
1шт.
1537620C1
ARM
ROD ASSEMBLY - right hand thread, Includes: Ref. 15 - 21
1шт.
15
1537612C1
BALL JOINT
BALLJOINT - right hand thread
1шт.
16
A48163
NUT
1шт.
17
1966613C1
PIN, SPLIT (COTTER)
PIN - split, 4 x 35 mm
1шт.
18
1537613C1
CLAMP
1шт.
19
1966126C1
LOCK NUT
1шт.
20
1537614C1
SCREW
1шт.
21
1966125C1
BALL JOINT
BALLJOINT
1шт.
22
614-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
16шт.
23
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
16шт.
25
1966187C1
SHIM,46mm ID x 86mm OD x 0.1mm Thk
- 0.10 mm thick
1шт.
25
1966188C1
SPACER
SHIM - 0.19 mm thick
1шт.
25
1966189C1
SPACER
SHIM - 0.35 mm thick
1шт.
26
1966190C1
PIN
- king
2шт.
27
1537618C1
OIL SEAL
- oil
2шт.
28
1537664C1
BOLT,M16 x 100mm
BOLT
2шт.
29
85805986
NUT,M16
2шт.
30
1537621C1
PIN
- king
2шт.
31
1537622C1
BUSHING
2шт.
32
1537623C1
HOUSING
- swivel, left
1шт.
33
1537624C1
HOUSING
- swivel, right
1шт.
Выбрано товаров: 41
