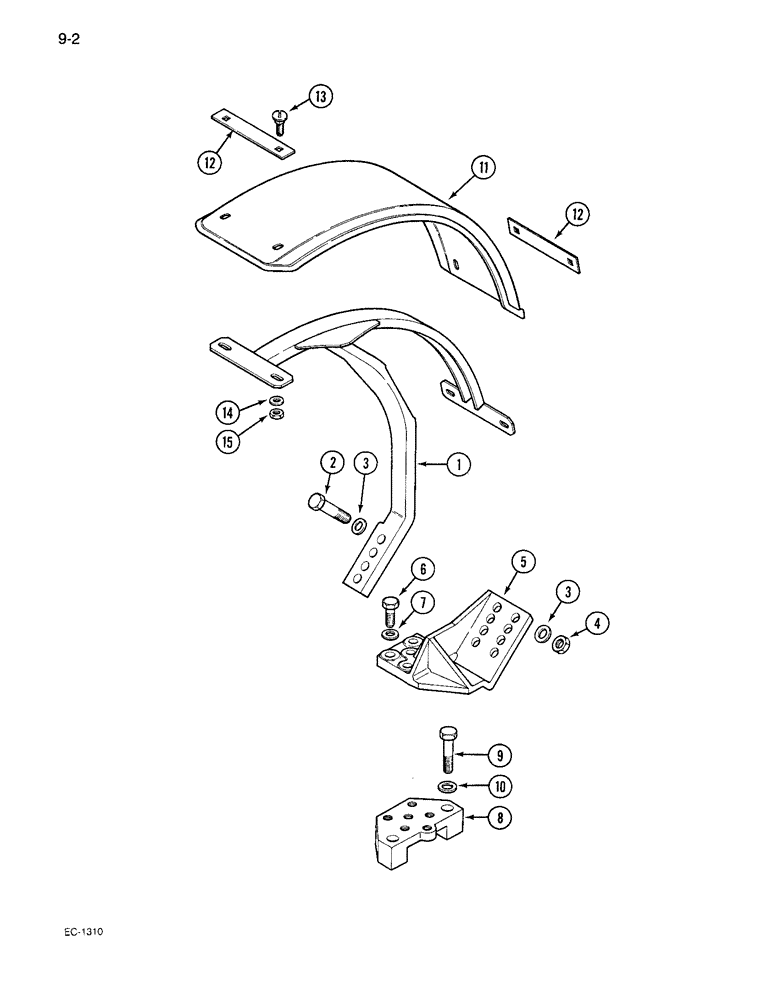

Запчасти Case IH 95-SERIES (9-2) - FRONT SPLASH SHIELDS, MFD AXLE (09) - CHASSIS/ATTACHMENTS

1

90007C1

HOLDER

SUPPORT ASSEMBLY - right hand

1шт.

1

90008C1

HOLDER

SUPPORT ASSEMBLY - left hand

1шт.

2

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

3

3141764R1

WASHER

- hardened, 17.5 x 32 x 6 mm

8шт.

4

829-1316

NUT,M16, Cl 10

- hex, 16 mm - 2.00, class 10

4шт.

5

89984C1

SUPPORT

BRACKET - right hand

1шт.

5

89987C1

SUPPORT

BRACKET - left hand

1шт.

6

628-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, 14 mm - 2.00 x 40 mm, class 10.9

6шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- flat, 15.5 x 28 x 3 mm, hardened

6шт.

8

1537533C1

SUPPORT

- splash shield

2шт.

9

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

10

3141764R1

WASHER

- flat, 17.5 x 32 x 6 mm, hardened

4шт.

11

90002C1

FENDER

- rubber

2шт.

12

90001C1

BAR

- retaining

4шт.

13

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT - carriage, 8 mm - 1.25 x 25 mm, class 4.6

8шт.

14

3058250R1

WASHER

- flat, 8.5 x 20 x 1.5 mm

8шт.

15

717457R1

NUT,M8 x 1.25, Thin

NUT - hex, 8 mm - 1.25

8шт.
