Запчасти Case IH 95-SERIES (6-16) - TRANSFER GEARBOX, MFD AXLE (06) - POWER TRAIN

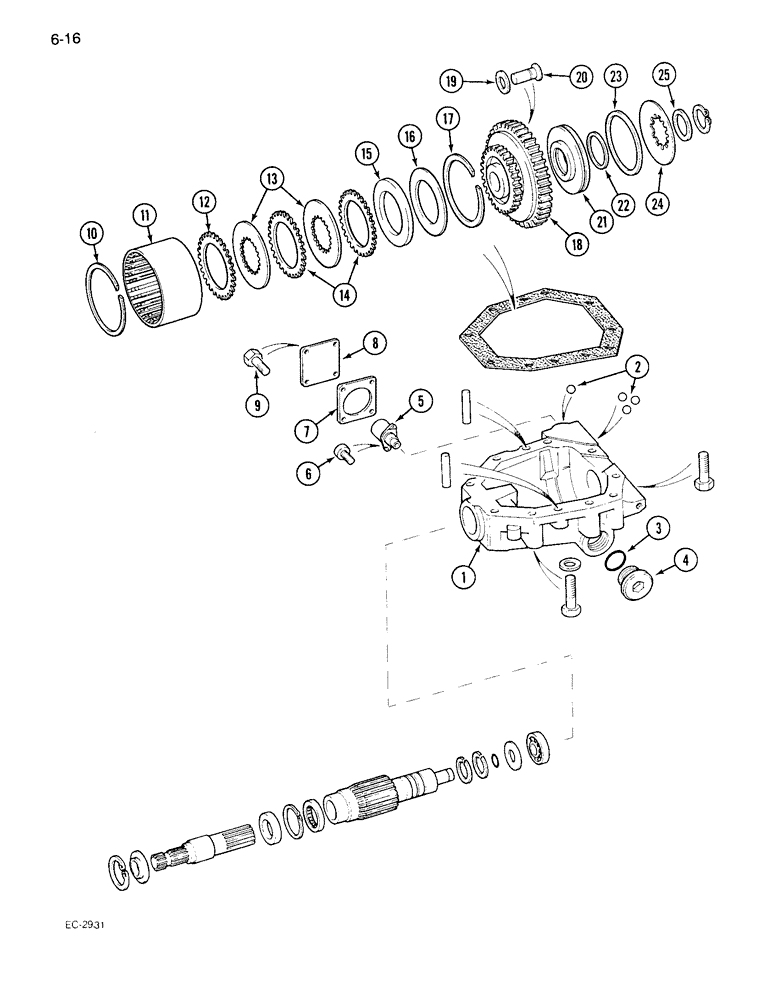

Схема запчастей Case IH 95-SERIES - (6-16) - TRANSFER GEARBOX, MFD AXLE (06) - POWER TRAIN
11
15
25
4
8
20
3
2
23
10
14
1
21
18
19
13
9
24
16
7
17
6
22
3
12

Артикул

Название

Примечание

Количество

1

1343079C1

HOUSING

ASSEMBLY - transfer gear, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BALL - steel 6 mm diameter (order 1343079C1)

4шт.

3

31354R1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

- 32.5 x 2.65 mm

1шт.

4

905476R1

PLUG

- drain, 36 mm - 4.00

1шт.

5

81171C1

VALVE

- solenoid, control

1шт.

6

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW - cap, hex socket, 5 mm - 0.8 x 10 mm, class 8.8

2шт.

7

81172C2

GASKET,0.8mm Thk

- valve cover

1шт.

8

81173C2

COVER

- valve

1шт.

9

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

4шт.

10

81190C1

RING, SNAP

RING - snap

1шт.

11

81184C1

RING CARRIER

CARRIER - clutch plates

1шт.

12

81189C1

WASHER

WASHER - clutch pack

1шт.

13

81187C1

DRIVEN PLATE

PLATE - inner

8шт.

14

81188C1

DRIVE PLATE

PLATE - outer

9шт.

15

81186C1

WASHER

- shim, 4.0 mm

1шт.

15

1968318C1

WASHER

WASHER - shim, 4.4 mm

1шт.

15

1968319C1

WASHER

WASHER - shim, 4.6 mm

1шт.

15

1968320C1

WASHER

WASHER - shim, 4.8 mm

1шт.

15

1968321C1

WASHER

WASHER - shim, 5.0 mm

1шт.

15

1968322C1

WASHER

WASHER - shim, 5.2 mm

1шт.

15

1968323C1

WASHER

WASHER - shim, 5.4 mm

1шт.

15

1968324C1

WASHER

WASHER - shim, 5.6 mm

1шт.

15

1968317C1

WASHER

WASHER - shim, 5.8 mm

1шт.

15

1968325C1

WASHER

WASHER - shim, 6.0 mm

1шт.

15

1968326C1

WASHER

WASHER - shim, 6.2 mm

1шт.

15

1968327C1

WASHER

WASHER - shim, 6.4 mm

1шт.

15

1968328C1

WASHER

WASHER - shim, 6.6 mm

1шт.

15

1968329C1

WASHER

WASHER - shim, 6.8 mm

1шт.

16

81186C1

WASHER

- shim, 4.0 mm

1шт.

17

81185C1

CIRCLIP

RING - snap

1шт.

18

81174C1

GEAR

- driven

1шт.

19

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

- 7 x 1.5 mm

1шт.

20

81178C1

LARGE PIN,17mm OD x 34.7mm L

PIN - piston pressure

1шт.

21

81175C1

PISTON

- clutch

1шт.

22

81176C1

PACKING RING

RING - 51.5 x 2.5 mm

1шт.

23

81177C1

RING,Square, 2.5mm Thk x 107mm ID

RING - 107 x 2.5 mm

1шт.

24

81180C1

SPRING

SPRING - clutch pack

1шт.

25

81181C1

RING

- clutch spring

1шт.

Выбрано товаров: 38
