Запчасти Case IH 95-SERIES (6-14) - DRIVE SHAFT AND SHIELD, MFD AXLE (06) - POWER TRAIN

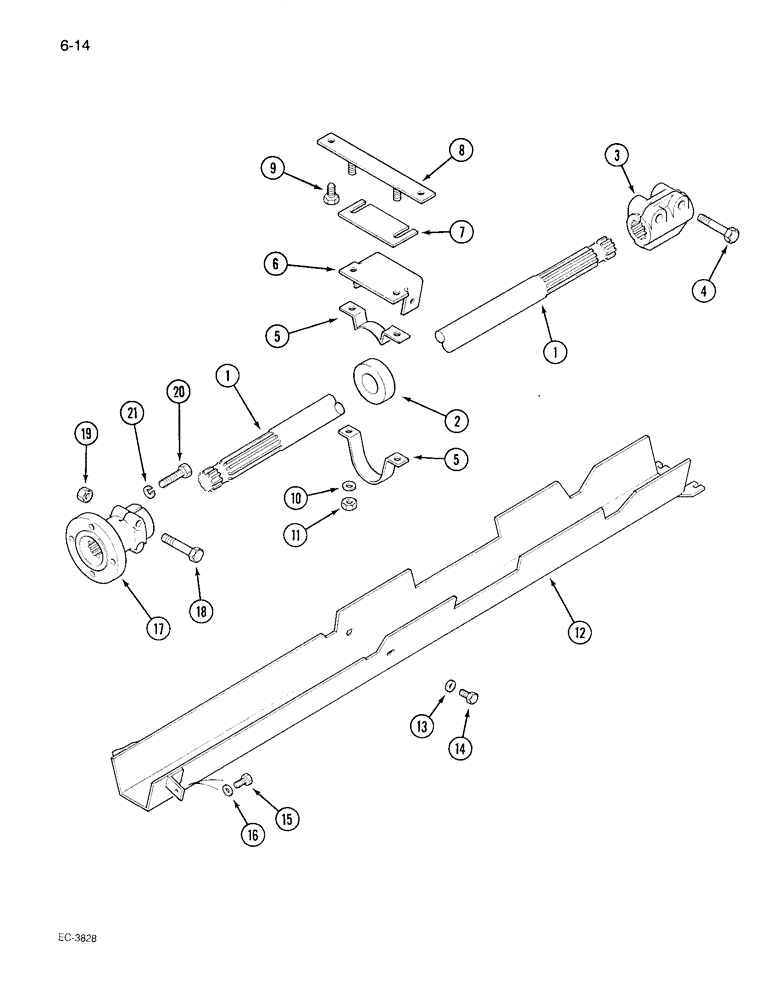

Схема запчастей Case IH 95-SERIES - (6-14) - DRIVE SHAFT AND SHIELD, MFD AXLE (06) - POWER TRAIN
21
18
3
1
16
20
6
12
14
8
1
5
5
17
10
19
13
4
9
7
11
2
15

Артикул

Название

Примечание

Количество

1

1335031C1

DRIVE SHAFT

SHAFT - drive, use on tractor with 4 cylinder engine

1шт.

1

1537422C1

DRIVE SHAFT

SHAFT - drive, use on tractor with 3 cylinder engine

1шт.

2

82236C92

BALL BEARING,32 mm ID x 62 mm OD x 19 mm

ASSEMBLY

1шт.

3

90030C2

FERRULE

COUPLING - rear

1шт.

4

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

-12 mm x 45 mm

2шт.

5

82234C1

CLAMP

HOUSING - bearing

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - bearing

1шт.

7

82226C1

SHIM

- 0.5 mm thick

1шт.

7

82227C1

SHIM

- 1.0 mm thick

1шт.

7

82228C1

SHIM

- 2.0 mm thick

1шт.

8

89485C3

BAR ASSY.

BAR ASSEMBLY - bearing support

1шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

829-13100

NUT - hex, 10 - 1.25 mm

2шт.

12

1537321C1

GUARD ASSY.

SHIELD - drive shaft, use on tractor with 4 cylinder engine

1шт.

12

1537406C1

GUARD ASSY.

SHIELD - drive shaft, use on tractor with 4 cylinder engine

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

17

1537306C1

CLEVIS

YOKE - 24 splines

1шт.

18

K965415

BOLT,M10 x 1.25 x 60mm

BOLT - hex, 10 - 1.25 x 60 mm

2шт.

19

K260181

NUT

- hex, 10 - 1.25 mm

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

21

892-11010

LOCK WASHER,M10

4шт.

Выбрано товаров: 25
