(6-12) - PLANETARIES, MFD AXLE

Запчасти Case IH 95-SERIES (6-12) - PLANETARIES, MFD AXLE (06) - POWER TRAIN

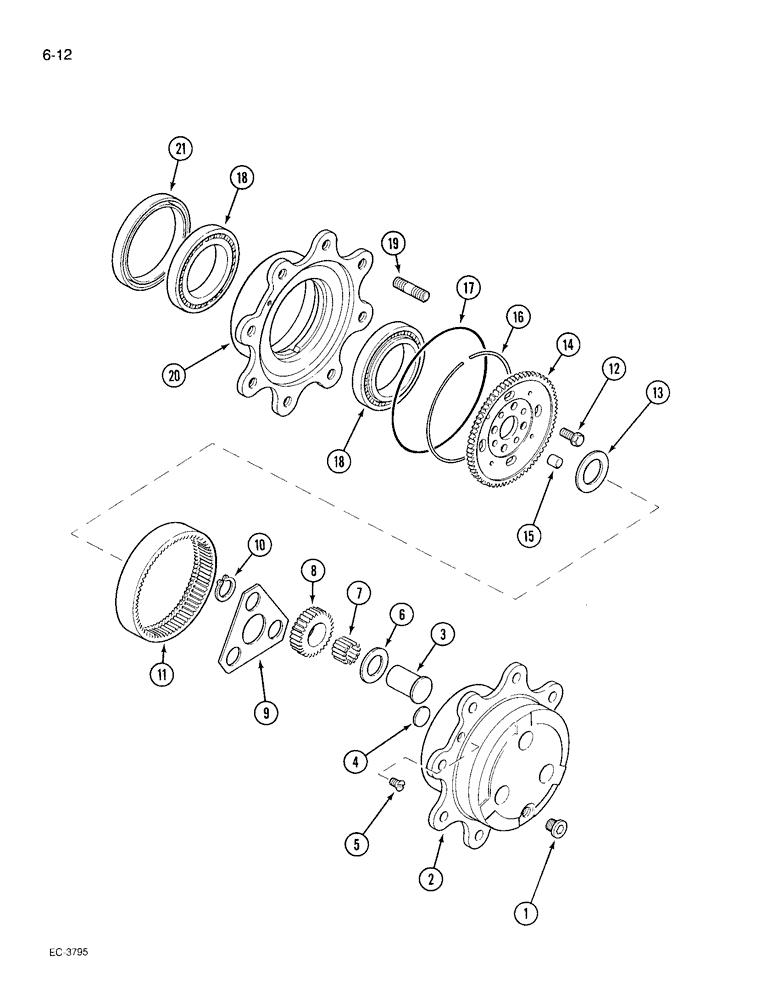

Схема запчастей Case IH 95-SERIES - (6-12) - PLANETARIES, MFD AXLE (06) - POWER TRAIN
13
2
3
20
10
1
5
4
15
9
18
8
16
18
19
12
14
21
17
11
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1537644C1

PLUG, DRAIN

PLUG - drain 30 mm - 2 mm

2шт.

1537662C1

HOUSING ASSY.

CARRIER ASSEMBLY - planetary, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - order 1537662C1

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - order 1537662C1

3шт.

4

1966579C1

WASHER

DISC

1шт.

5

K395082

SCREW,M8 x 20mm

- planetary cover plate

4шт.

6

K395091

THRUST WASHER

WASHER, THRUST

6шт.

7

1537651C1

NEEDLE

BEARING - needle

180шт.

8

1537650C1

GEAR, PLANETARY

GEAR - planetary

6шт.

9

1537642C1

LARGE PLATE

PLATE

2шт.

10

K395028

RING, SNAP

RING - lock

6шт.

11

1537649C1

GEAR

- crown

2шт.

12

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, Hex Flg, M12 x 33, 12.9

12шт.

13

1537652C1

WASHER, THRUST

PLATE - thrust

2шт.

14

1537653C1

PINION

PLATE - reaction

2шт.

15

1537647C1

SPLIT PIN/SAFETY PIN

PIN - centering

4шт.

16

1537646C1

SPECIAL RING

RING

2шт.

17

1537640C1

O-RING

2шт.

18

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

BEARING

4шт.

19

1537643C1

STUD

16шт.

20

1537645C1

HUB

- wheel

2шт.

21

1537641C1

SEAL

2шт.
