Запчасти Case IH 95-SERIES (6-10) - DRIVE SHAFTS, MFD AXLE (06) - POWER TRAIN

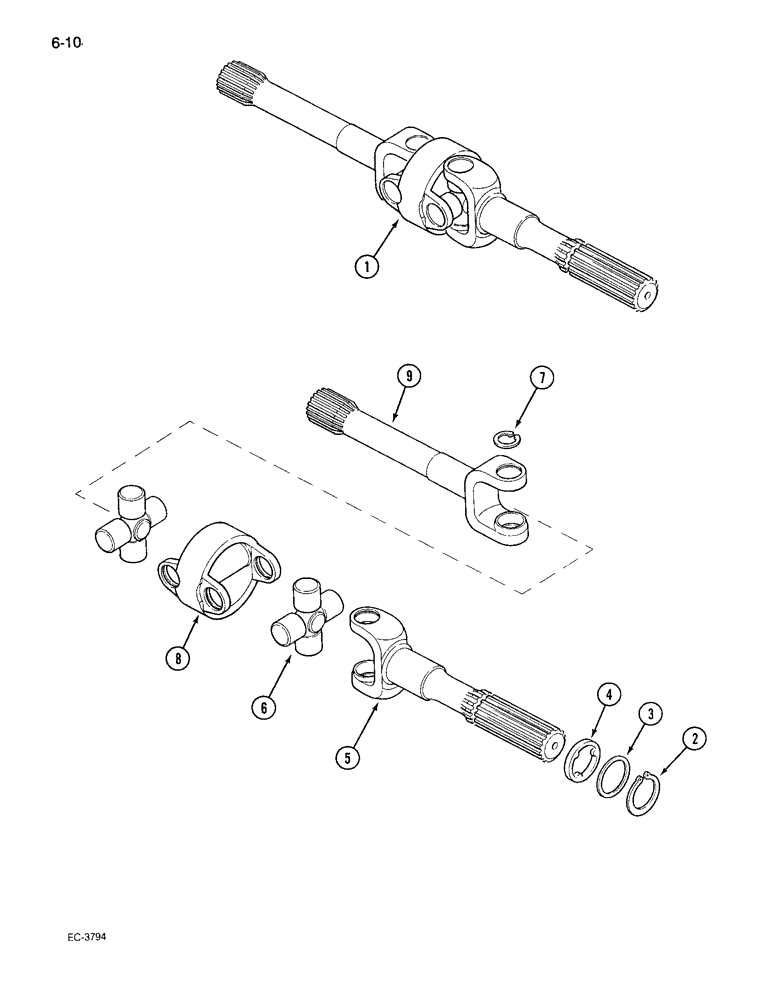

Схема запчастей Case IH 95-SERIES - (6-10) - DRIVE SHAFTS, MFD AXLE (06) - POWER TRAIN
1
6
5
9
2
3
8
7
4

Артикул

Название

Примечание

Количество

1

1537637C1

DRIVE SHAFT

SHAFT ASSEMBLY, Includes: Ref. 2 - 9

2шт.

2

1537631C1

CIRCLIP

RING - snap

1шт.

3

1537639C1

THRUST WASHER

- thrust

1шт.

4

1537638C1

THRUST WASHER

- thrust

1шт.

5

1537632C1

HALF SHAFT

SHAFT - half, wheel side

2шт.

1537634C1

U-JOINT SPIDER

SPIDER ASSEMBLY, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

SPIDER - order 1537634C1

2шт.

7

1537636C1

WASHER, THRUST

RING - lock

4шт.

8

1537633C1

BODY

- central

1шт.

9

1537635C1

HALF SHAFT

SHAFT - half, differential side

1шт.

Выбрано товаров: 10
