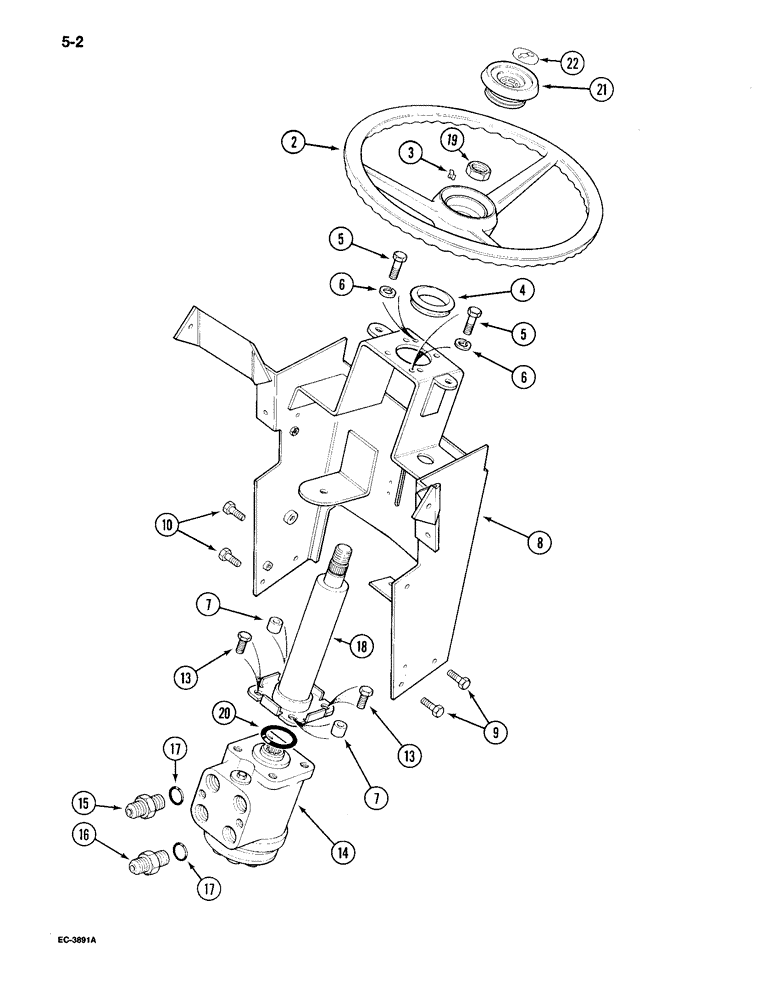

Запчасти Case IH 895 (5-02) - STEERING WHEEL, SUPPORT AND VALVE, TRACTOR WITHOUT CAB (05) - STEERING

2

3123597R91

HANDWHEEL

WHEEL - steering, 408 mm dia. (Order 385156R1), Includes: Ref. 3

1шт.

2

3123302R91

HANDWHEEL

WHEEL - steering, 408 mm dia, low dish (Low profile tractor) (Order 385156R1), Includes: Ref. 3

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP - retaining

1шт.

Replaced with o-ring P/N 238-5149

1шт.

4

3123366R1

PLUG

BOOT - rubber, steering shaft (Order 3141495R1)

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 3/8 inch

2шт.

8

1333059C2

SUPPORT

ASSEMBLY - steering (2 Wheel drive tractor)

1шт.

8

99968C2

STEERING SUPPORT

SUPPORT ASSEMBLY - steering (MFD Tractor)

1шт.

8

1985233C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - steering (Orchard tractor with creeper)

1шт.

8

1985233C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - steering (2 Wheel drive orchard tractor) (With forward and reverse)

1шт.

8

3121632R3

SUPPORT ASSY.

SUPPORT ASSEMBLY - steering (MFD Orchard tractor) (With forward and reverse)

1шт.

9

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8 NC x 1/2 inch

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

14

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering

1шт.

366441A1R

REMAN-HYD PUMP

895 (NORTH AMERICA) (1/90-12/94), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

18

3121187R92

STEERING COLUMN

SHAFT ASSEMBLY - steering, Includes: Refs. 19 and 20

1шт.

19

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex

1шт.

20

1537340C1

O-RING,44.12mm ID x 2.62mm Width

- 44.2 x 2.62 mm

1шт.

68837C3

CAP

ASSEMBLY- steering wheel, Includes: Refs. 21 and 22

1шт.

21

68836C1

CAP

- steering wheel

1шт.

22

A180055

CAP ASSY.

INSERT - "Case" eagle

1шт.
