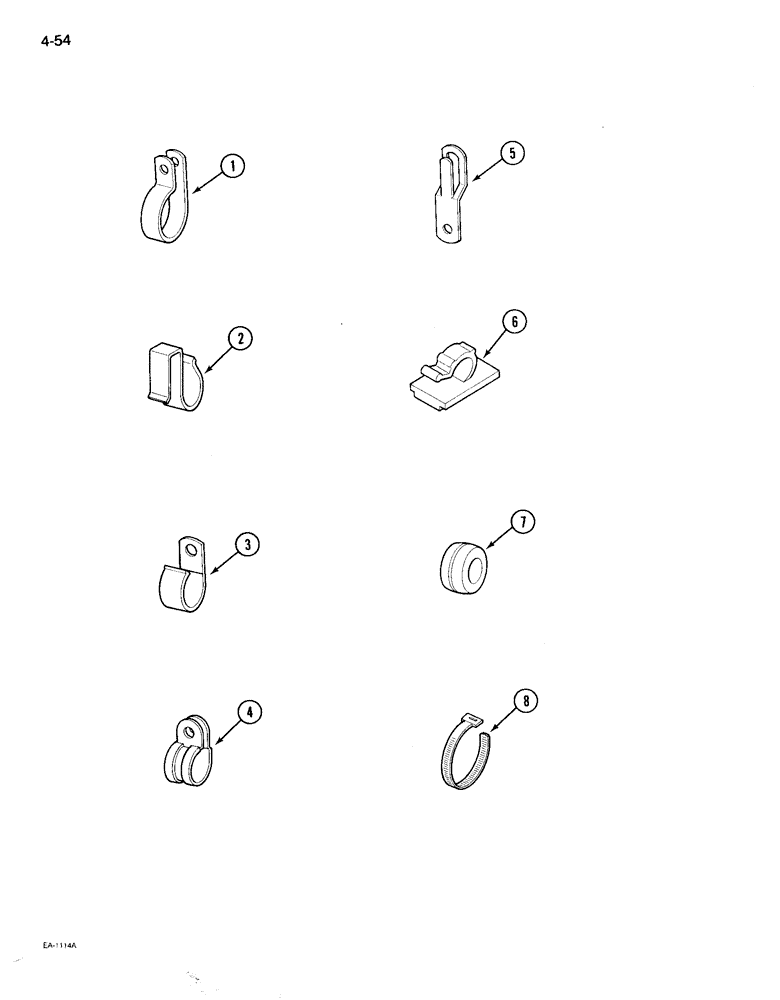

Запчасти Case IH 895 (4-54) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS

1

3116240R1

CLIP

- 0.56 diameter, closed (Battery cable) (Without cab)

1шт.

2

3116918R1

CABLE CLIP

CLIP - edge, 0.25 max diameter (Air cleaner bracket)

1шт.

2

3123109R1

CABLE CLIP

CLIP - edge, 0.35 max diameter (Temperature sender cable)

1шт.

2

3125873R1

CLIP

- edge, 0.374 max diameter (Front grille) (Without cab)

2шт.

2

537024R1

CLIP

- edge, 0.46 max diameter (Front grille) (With cab)

1шт.

2

537024R1

CLIP

- edge, 0.46 max diameter (Seat deck, left) (Without cab)

1шт.

2

537025R1

CLIP

- edge, 0.55 max diameter (Master cylinder bracket)

1шт.

2

539015R1

CLIP

- edge, 0.75 max diameter (Park brake flasher)(Without cab)

1шт.

2

535303R1

CABLE CLIP

CLIP - edge, 0.95 max diameter (Battery tray) (Without cab)

1шт.

3

100770H

CLIP

- 0.31 diameter, open (Grille shroud, left) (Without cab)

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open (Main harness) (Without cab)

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open (Grille tie bar, left) (With cab)

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open (Grille shroud) (With cab)

2шт.

3

1500151C1

CLAMP

CLIP - 0.75 diameter, open (Harness to engine) (With cab)

2шт.

4

3125823R1

CLIP

- 0.75 diameter (Battery tray) (Without cab)

1шт.

5

708115R1

PLATE ASSY.

CLIP - spring type

1шт.

6

1500496C1

CABLE CLIP

CLIP - cable, 3.0 mm diameter (Fuel tank, left) (With cab)

2шт.

6

1502353C1

CABLE CLIP

CLIP - cable, 6.5 mm diameter (Instrument panel) (With cab)

2шт.

6

1502354C1

CABLE CLIP

CLIP - cable, 9.0 mm diameter (Instrument panel) (With cab)

2шт.

6

1536404C1

CLIP

- cable, 20 mm diameter (Instrument shroud) (Without cab)

1шт.

7

3113661R1

GROMMET

- (Left and right fenders) (Without cab)

2шт.

7

705548R1

GROMMET

- 0.25 x 0.56 inch (Rear fender top) (Without cab)

1шт.

7

3115463R1

GROMMET

- 0.50 x 0.88 inch (Fender side sheet) (Without cab)

1шт.

7

3123681R1

GROMMET

- 0.31 x 0.56 inch (Rear flasher lamps) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Battery cable) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Battery support) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Battery tray) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Fuel pipe) (Without cab)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Steering support) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Front/cab harness)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Tachometer drive cable)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Oil pressure gauge tube)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Battery earth) (Without cab)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75" max bundle (Starter harness) (With cab)

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0" max bundle (Air inlet pipe) (With cab)

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0" max bundle (Steering support) (Without cab)

1шт.
