Запчасти Case IH 895 (4-46) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS

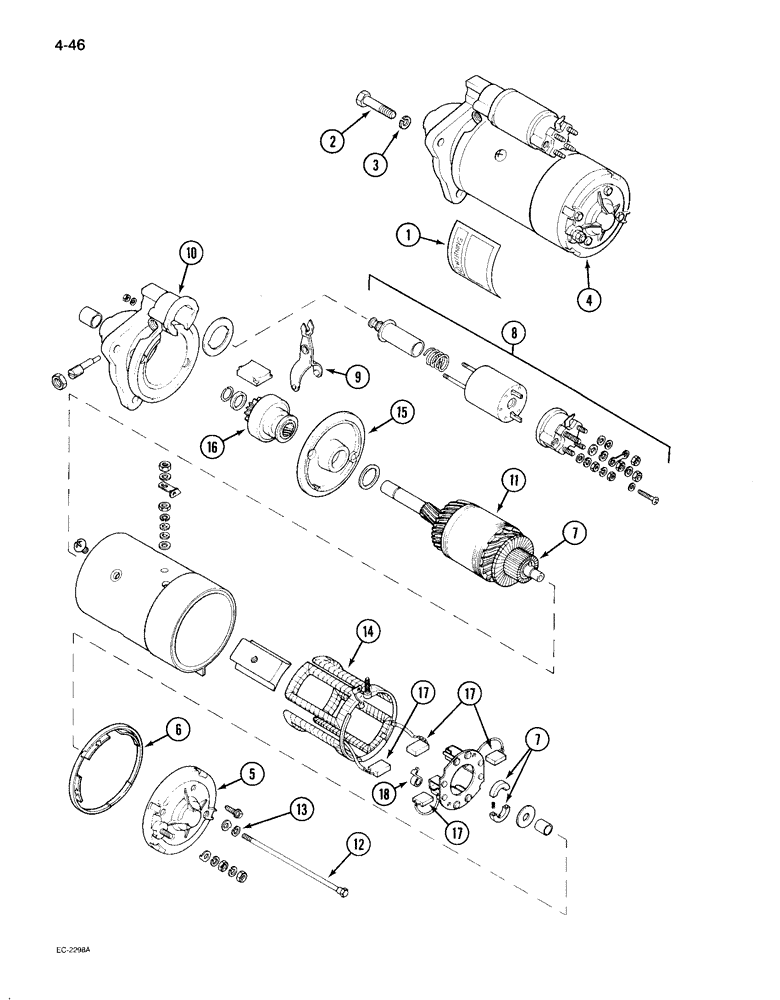

Схема запчастей Case IH 895 - (4-46) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS
2
17
3
6
13
15
17
10
8
17
12
7
11
4
18
16
7
14
5
1
9

Артикул

Название

Примечание

Количество

1

321-3709

DECAL

DECAL - warning, starter motor (English) (Order 321-7040)

1шт.

1

321-6798

DECAL

DECAL - warning, starter motor (French)

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

537140R96

STARTING MOTOR

MOTOR - starting, Lucas No. 27508

1шт.

4

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

4

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

4

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

5

3206511R91

BRACKET

KIT - commutator end frame, Includes: Refs. 5 - 18 and P/N's 3206529R91, 78986C1, 3206528R91 and 3113029R91

1шт.

6

3113026R91

PLATE ASSY.

PLATE ASSEMBLY - brush mounting

1шт.

7

3206531R91

BRAKE PACKAGE

KIT - brakes

1шт.

8

84060C1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

9

84061C1

KIT

KIT - engaging lever

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - end mounting

1шт.

11

84059C1

ARMATURE

ARMATURE ASSEMBLY - starter motor

1шт.

12

3129088R1

BOLT

BOLT - through

2шт.

13

3129089R1

WASHER

WASHER - spring

2шт.

14

84058C1

KIT

KIT - field coils

1шт.

15

3119902R91

SUPPORT

BEARING - intermediate

1шт.

16

84209C1

DRIVE ASSY.

DRIVE ASSEMBLY - starter motor

1шт.

17

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT - brushes

1шт.

18

3206523R91

SPRING KIT

KIT - brush springs

1шт.

3206529R91

KIT

KIT - sundry parts (Not illustrated)

1шт.

78986C1

PACKAGE

KIT - retention (Not illustrated) (Order A48239)

1шт.

3206528R91

SEAL KIT

KIT - sealing (Not illustrated) (Order K262023)

1шт.

3113029R91

BUSHING

KIT - bushes (Not illustrated)

1шт.

Выбрано товаров: 26
