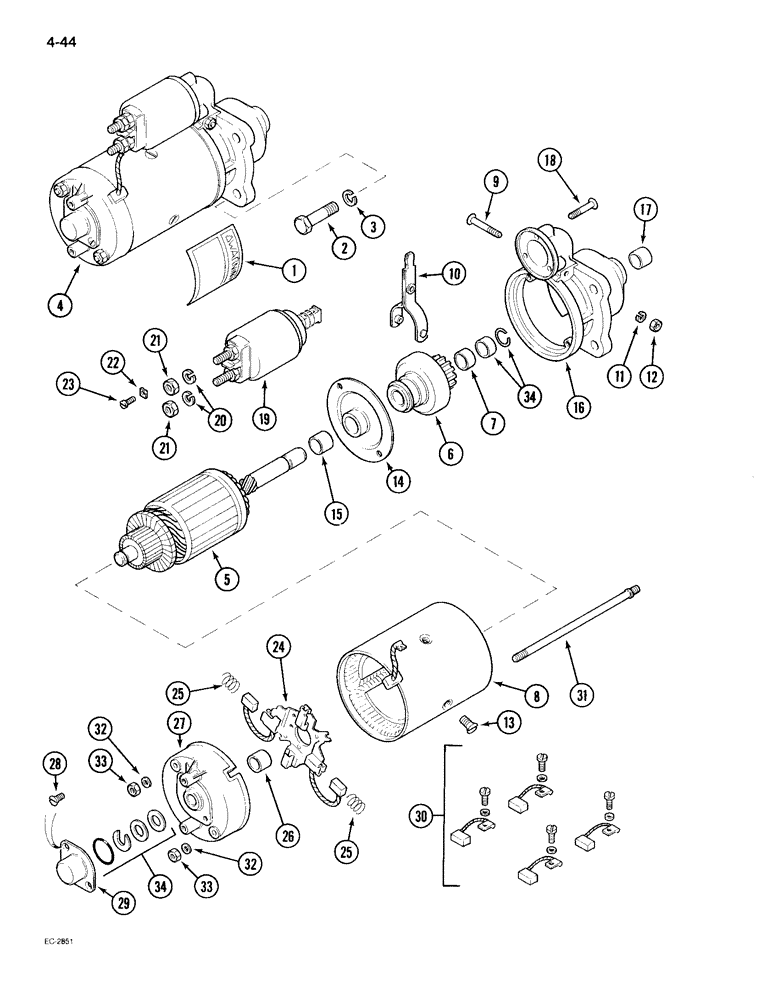

Запчасти Case IH 895 (4-44) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

1

321-3709

DECAL

DECAL - warning, starter motor (English) (Order 321-7040)

1шт.

1

321-6798

DECAL

DECAL - warning, starter motor (French)

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

529965R93

STARTING MOTOR

MOTOR - starting (Order 537140R96), Includes: Refs. 5 - 34

1шт.

4

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

4

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

4

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

5

3079252R1

ARMATURE

ARMATURE - starter motor

1шт.

6

3129631R1

DRIVE ASSY.

DRIVE ASSEMBLY - starter motor

1шт.

7

3079254R1

BUSHING

BUSHING - drive assembly

1шт.

8

3079356R91

COIL

COIL - field winding, 1 to 4 complete

1шт.

9

3079251R1

BOLT

SCREW - engaging lever

1шт.

10

3078965R1

LEVER

FORK - clutch drive engaging lever (Order K965134)

1шт.

11

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 mm

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

NUT - hex, 8 mm - 1.25 (Engaging lever)

1шт.

13

3129639R1

SCREW

SCREW - field coil retaining

4шт.

14

3079253R91

HOUSING, BEARING

BEARING - intermediate (Order 3078966R91)

1шт.

15

3078967R1

BUSHING

BUSHING - bearing

1шт.

16

3129633R1

HOUSING

HOUSING - drive end

1шт.

17

3055738R1

BUSHING

BUSHING - drive end bearing

1шт.

18

3078974R1

SCREW

SCREW - solenoid switch retaining

3шт.

19

3079167R1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

20

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

NUT, (Solenoid terminal) M10, Cl 8

2шт.

22

3132763R1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

23

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW - machine, slotted pan head, 4 mm - 0.7 x 6 mm

1шт.

24

3079174R1

HOLDER

HOLDER - brush (Order K965157)

1шт.

25

3079420R1

SPRING

SPRING - compression, brush

4шт.

26

3079170R1

BUSHING

BUSHING - commutator end (Order K965145)

1шт.

27

3129632R91

END ASSY.

FRAME - commutator end

1шт.

28

3079426R1

SCREW

SCREW - fillister head, 5/16 inch

2шт.

29

3079177R1

CAP

CAP - commutator end frame (Order K965149)

1шт.

30

3079359R91

BRUSH, COMMUTATOR

BRUSH KIT - brush set

1шт.

31

3079172R1

STUD

STUD - thru fixing

2шт.

32

3079176R1

WASHER

WASHER - plain, thru fixing stud

2шт.

33

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

2шт.

34

3079173R91

KIT

KIT - terminal parts (Order 3079555R91)

1шт.
