Запчасти Case IH 895 (4-36) - MFD CONTROL CABLE (04) - ELECTRICAL SYSTEMS

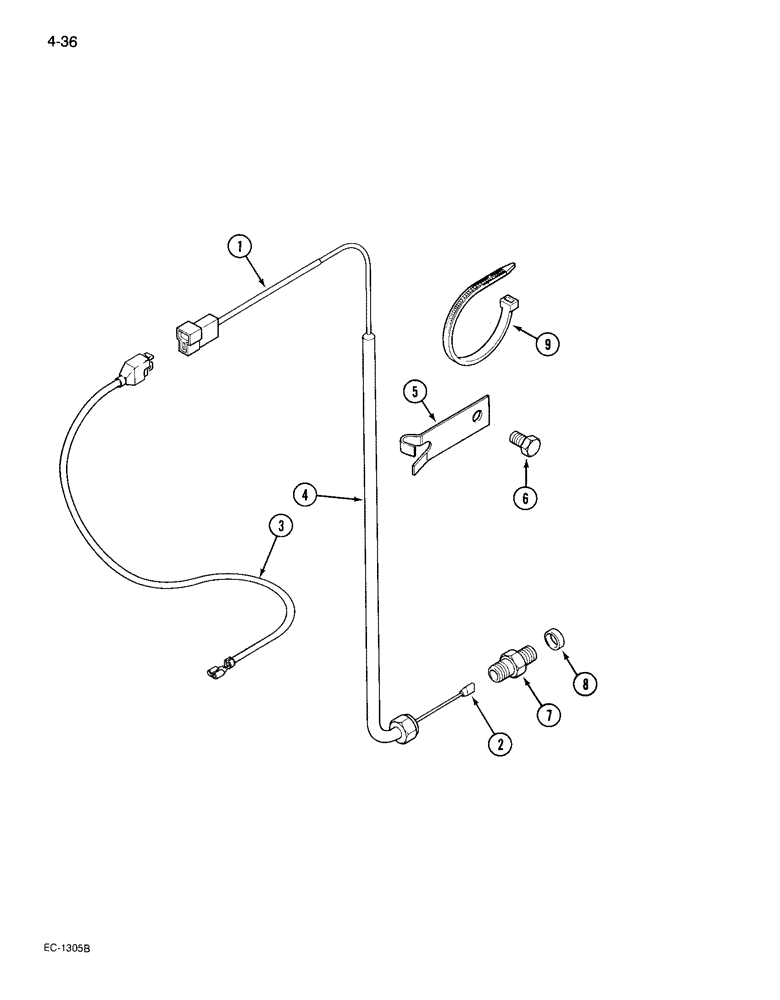

Схема запчастей Case IH 895 - (4-36) - MFD CONTROL CABLE (04) - ELECTRICAL SYSTEMS
4
3
6
1
9
2
5
8
7

Артикул

Название

Примечание

Количество

1

82634C1

CABLE

- MFD solenoid

1шт.

2

905694R1

ELEC. TERMINAL PIN

TERMINAL - cable end

1шт.

3

92118C1

CABLE

- MFD solenoid to bulkhead (With cab)

1шт.

4

82635C1

TUBE ASSY.,8 mm OD, 370, 40 mm Length

TUBE - harness protection

1шт.

5

99842C2

CLAMP

- cable (With cab)

1шт.

6

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

(With cab) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

7

3056174R1

HYD CONNECTOR,M12 x 1.5 x M14 x 1.5

UNION - hydraulic tube

1шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie (Without cab)

1шт.

Выбрано товаров: 9
