Запчасти Case IH 895 (4-34) - TWO SPEED POWER SHIFT CONTROL, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

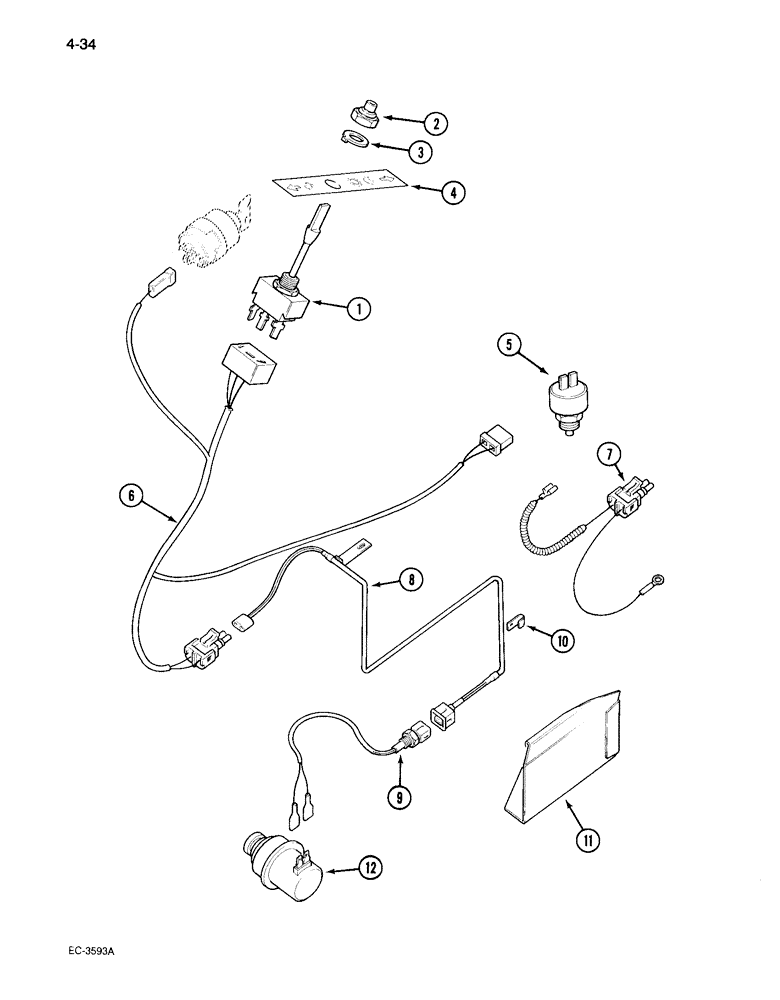

Схема запчастей Case IH 895 - (4-34) - TWO SPEED POWER SHIFT CONTROL, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS
2
3
11
7
10
9
1
4
12
5
6
8

Артикул

Название

Примечание

Количество

1

1537379C1

TOGGLE SWITCH

SWITCH - toggle (2 speed power shift control)

1шт.

2

1536155C1

WASHER

- keyed

1шт.

3

1536156C1

COVER

- toggle switch

1шт.

4

1330901C1

DECAL

- 2 speed power shift

1шт.

5

3106565R91

SWITCH

- plunger, neutral starting

1шт.

6

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

8

99992C2

CABLE

- 2 speed power shift

1шт.

9

99990C1

HARNESS

CABLE - solenoid

1шт.

10

92071C1

CLAMP

CLIP - solenoid cable

1шт.

11

99952C2

SHIELD

- solenoid cable

1шт.

12

1958120C1

SOLENOID VALVE

VALVE - solenoid (See Fig. 8-24)

1шт.

1

1536154C1

TOGGLE SWITCH

SWITCH - toggle (2 speed power shift control), Tractor with cab

1шт.

2

1536155C1

WASHER

- keyed, Tractor with cab

1шт.

3

1536156C1

COVER

- toggle switch, Tractor with cab

1шт.

4

98098C1

DECAL

- 2 speed power shift, Tractor with cab

1шт.

5

1332724C1

SWITCH

- plunger, neutral starting, Tractor with cab

1шт.

6

1536959C1

HARNESS

ASSEMBLY - instrument panel, Tractor with cab, Start Serial: JJE0017402

1шт.

6

1537986C1

HARNESS

ASSEMBLY - instrument panel, Tractor with cab, Serial Range: -JJE0017402

1шт.

7

91917C2

CABLE

- 2 speed power shift solenoid, Tractor with cab

1шт.

8

99991C1

CABLE

- 2 speed power shift, Tractor with cab

1шт.

9

99990C1

HARNESS

CABLE - solenoid, Tractor with cab

1шт.

10

92071C1

CLAMP

CLIP - solenoid cable, Tractor with cab

1шт.

11

99952C2

SHIELD

- solenoid cable, Tractor with cab

1шт.

12

1958120C1

SOLENOID VALVE

VALVE - solenoid (See Fig. 8-24), Tractor with cab

1шт.

Выбрано товаров: 24
