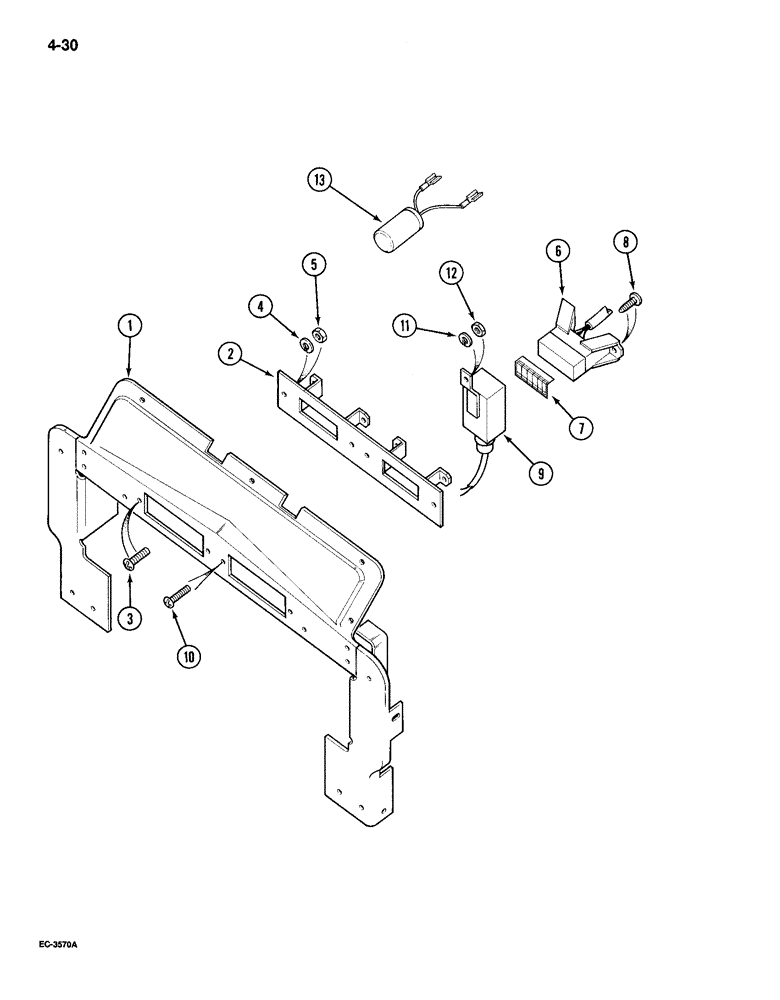

Запчасти Case IH 895 (4-30) - BULKHEAD ELECTRICS, TRACTOR WITHOUT CAB, FUSE BOX (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

PLATE ASSEMBLY - instrument panel support (See Fig. 9-16)

1шт.

2

1536400C1

PLATE ASSY.

PLATE ASSEMBLY - adaptor, fuse box mounting

1шт.

3

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

3шт.

4

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

5

225-14110

NUT,#10-24

3шт.

6

NSS

NOT SOLD SEPARAT

BOX - fuse (Order harness assembly 1537028C1)

1шт.

7

1536851C1

PRODUCT GRAPHIC

DECAL - fuse box symbols

1шт.

8

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

9

1536091C2

FLASHER UNIT

UNIT - flasher, warning lights (Pektron), Flasher units

1шт.

10

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch, Flasher units

1шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Flasher units #10

1шт.

12

225-14110

NUT,#10-24

Flasher units #10-24

1шт.

13

3125984R2

FLASHER UNIT

UNIT - flasher, park brake (Pektron), Flasher units

1шт.
