Запчасти Case IH 895 (4-10) - LIGHTS AND HARNESS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

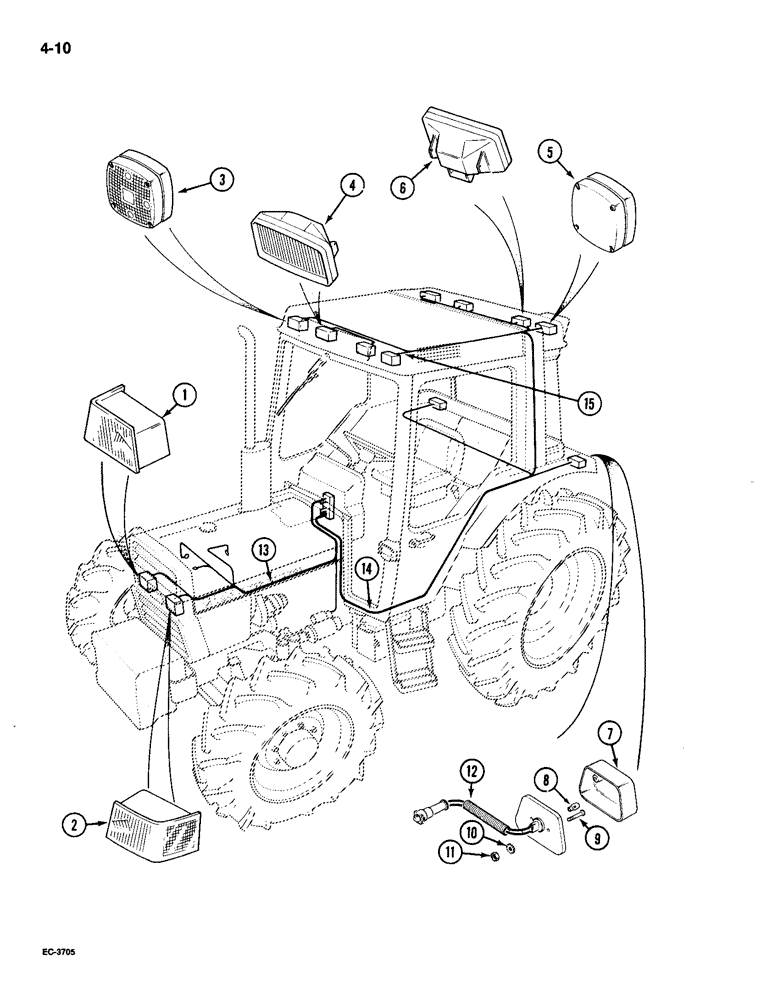

Схема запчастей Case IH 895 - (4-10) - LIGHTS AND HARNESS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
2
12
14
4
15
6
11
13
5
18
9
7
3
1
8

Артикул

Название

Примечание

Количество

1

1964881C2

HEADLIGHT

LIGHT ASSEMBLY - head, without bulb, right (See Fig. 4-16)

1шт.

2

1964882C2

HEADLIGHT

LIGHT ASSEMBLY - head, without bulb, left (See Fig. 4-16)

1шт.

3

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flasher warning, front (See Fig. 4-18)

2шт.

4

1987328C2

LAMP, WORK

LIGHT ASSEMBLY - flood, front (See Fig. 4-18)

2шт.

5

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flasher warning, rear (See Fig. 4-18)

2шт.

6

1983695C2

HEADLIGHT

LIGHT ASSEMBLY - flood, rear (See Fig. 4-18)

2шт.

91805C91

LAMP

LIGHT ASSEMBLY - tail, Includes: Refs. 7 and 8

2шт.

7

91929C1

LENS

- red, tail

1шт.

8

26617R1

BULB,C2F, #168, 14V

LAMP - type C-2F, trade No. 168 (Order D71346)

1шт.

9

31108R1

SCREW,Cross Pan Hd, M5 x 30

- pan, cross recess, 5 mm - 0.80 x 30 mm

4шт.

10

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

4шт.

11

824-1405

NUT,M5, Cl 5

4шт.

12

91860C3

HARNESS

- tail light

2шт.

13

1536961C1

HARNESS

ASSEMBLY - front, Start Serial: JJE0018177

1шт.

13

1537879C1

HARNESS

ASSEMBLY - front, Serial Range: -JJE0018177

1шт.

RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

14

1328852C3

HARNESS

ASSEMBLY - cab, Start Serial: JJE0018177

1шт.

14

1987425C1

HARNESS

ASSEMBLY - cab, Serial Range: -JJE0018177

1шт.

15

1987342C1

HARNESS

- turn signal

1шт.

Выбрано товаров: 19
