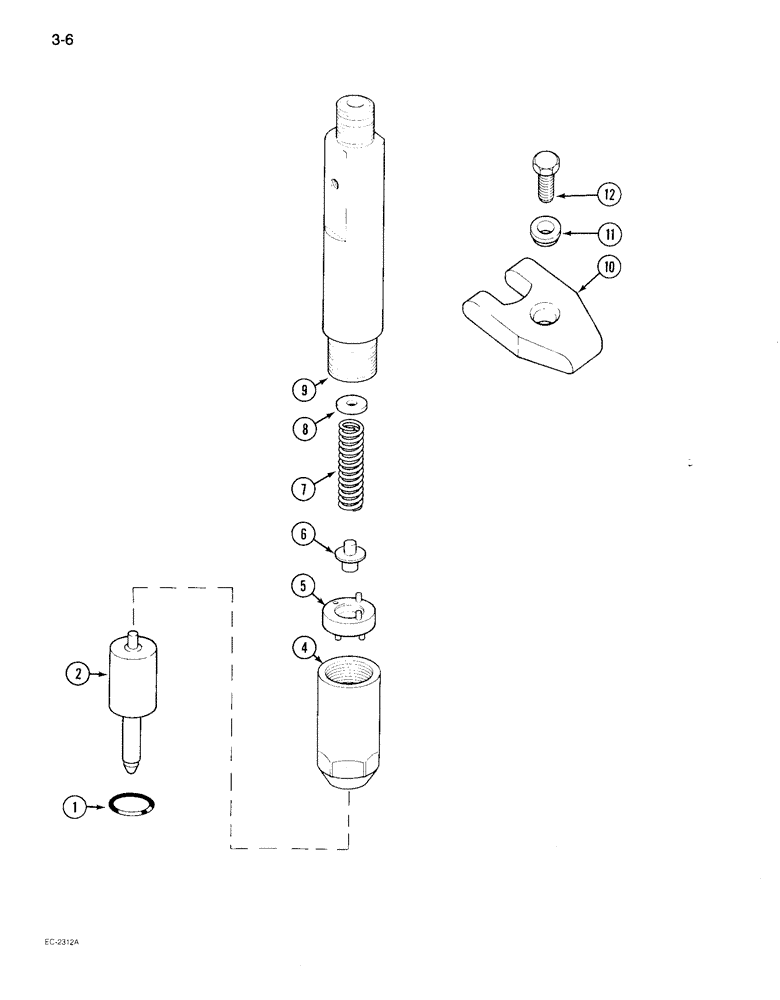

Запчасти Case IH 895 (3-06) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING - injection nozzle

4шт.

Part of cylinder head gaskets service kit P/N REF

1шт.

2

735255C91

REMAN-FUEL INJECTOR

NOZZLE - injection, remanufactured

4шт.

2

1934199C1

CORE-FUEL INJECTOR

RETURN NUMBER - nozzle (Use this part number to return core for credit)

4шт.

2

3218251R2

NOZZLE CAP

NOZZLE - injection

4шт.

3218247R92

HOLDER

HOLDER - injection nozzle, Includes: Refs. 4 - 9

4шт.

4

3218388R1

NUT

NUT - nozzle cap

1шт.

5

3218387R1

SPACER

SPACER - nozzle holder

1шт.

6

3218386R2

SPACER

PIN - pressure

1шт.

7

3218385R2

SPRING

SPRING - compression

1шт.

8

3218657R1

SHIM

SHIM - 0.500 mm

1шт.

8

3218659R1

SHIM

SHIM - 0.550 mm

1шт.

8

3218661R1

SHIM

SHIM - 0.600 mm

1шт.

8

3218662R1

SHIM

SHIM - 0.700 mm

1шт.

8

3218663R1

SHIM

SHIM - 0.800 mm

1шт.

8

3218664R1

SHIM

SHIM - 0.900 mm

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - nozzle holder

1шт.

10

3218128R1

RETAINER

RETAINER - fuel injection nozzle

4шт.

11

3218129R1

WASHER

WASHER - retainer bolt

4шт.

12

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

BOLT, Hex, 5/16"-18 x 1", G8, Full Thd

4шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 1 (See Fig. 2-60)

1шт.
