Запчасти Case IH 895 (2-62) - ENGINE SERVICE KIT, CRANKCASE GASKETS (02) - ENGINE

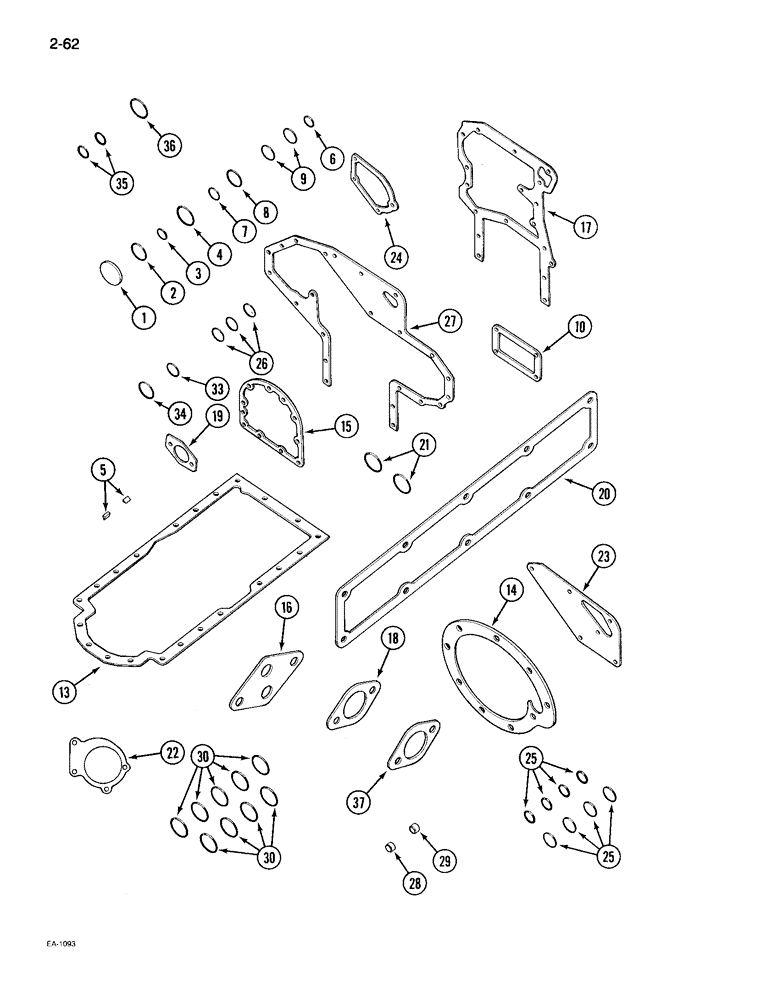

Схема запчастей Case IH 895 - (2-62) - ENGINE SERVICE KIT, CRANKCASE GASKETS (02) - ENGINE
27
5
1
29
3
23
25
4
19
20
18
2
14
37
10
26
28
16
17
35
34
24
9
33
13
21
30
25
22
6
7
8
15
36
30

Артикул

Название

Примечание

Количество

1967011C1

GASKET KIT

KIT - service, crankcase gaskets, Includes: Refs. 1 - 37

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

- expansion, 2-3/4 inch

1шт.

2

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

3

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

1шт.

4

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

5

714868R1

SEALING STRIP

- sealing

2шт.

6

717222R1

O-RING

- 11.3 x 16.1 mm

1шт.

7

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

8

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

- sealing

1шт.

9

3138687R1

RING

- packing

2шт.

10

3138640R1

GASKET

- injection pump cover

1шт.

13

3055161R2

OIL PAN GASKET SET

- oil pan

1шт.

14

3055177R2

GASKET

- water pump

1шт.

15

3055215R2

GASKET

- crankcase oil seal retainer

1шт.

16

3055237R2

GASKET

- oil filter socket

1шт.

17

3055239R3

GASKET

- front plate

1шт.

18

3138639R1

GASKET

- crankcase breather

1шт.

19

3055384R2

GASKET

- fuel injection pump

1шт.

20

3055393R4

GASKET,1.5mm Thk

- side cover

1шт.

21

3055952R2

O-RING

RING - oil pump sealing

2шт.

22

3055961R2

GASKET

- oil pump

1шт.

23

3055999R2

GASKET

- water pump carrier

1шт.

24

3132541R2

GASKET

- closing cover

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

8шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

27

3055994R3

GASKET

- crankcase front cover

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - oil, radial lip type

1шт.

29

784162R91

SEALING RING

SEAL - tachometer drive, Serial Range: (Optional-3052295R91)

1шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

9шт.

33

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

34

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm

1шт.

35

3132869R1

O-RING

2шт.

36

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

37

3136406R2

GASKET

- oil filler elbow

1шт.

Выбрано товаров: 34
