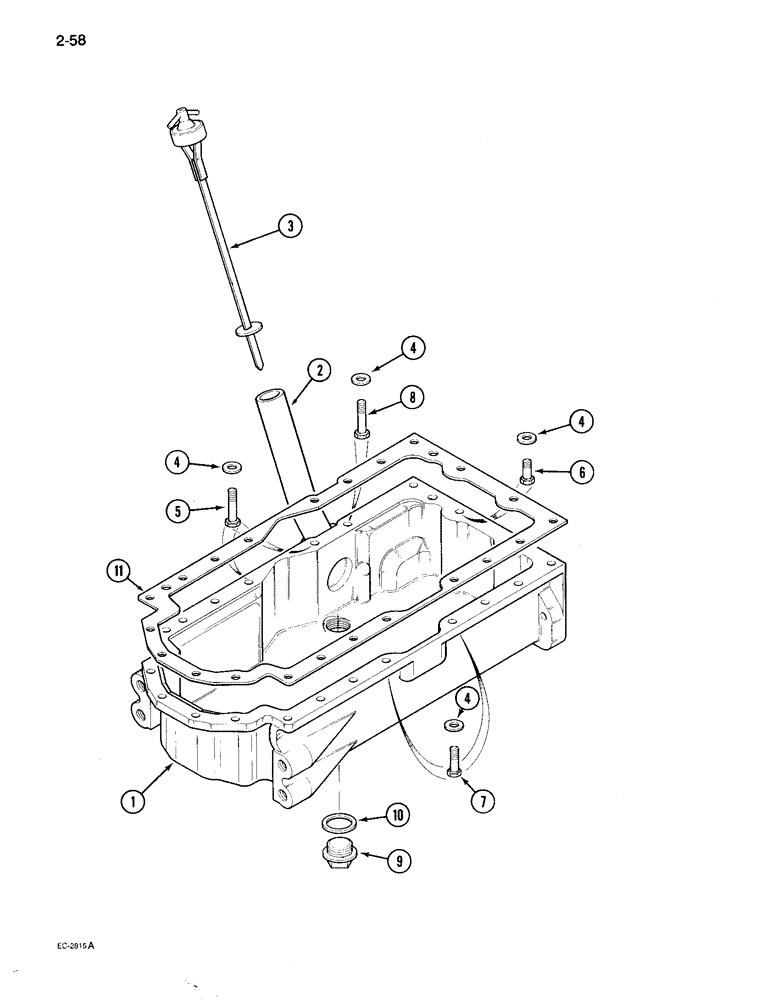

Запчасти Case IH 895 (2-58) - OIL PAN (02) - ENGINE

1

1806867C91

PAN, ENGINE OIL

PAN - oil, Includes: Ref. 2

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE - oil fill

1шт.

3

1329040C3

DIPSTICK,260mm L

GAUGE - oil level

1шт.

4

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- hardened, 5/16 inch

22шт.

5

28632R1

BOLT,Hex, 5/16" - 18 x 5", Gr 5

- hex, 5/16 NC x 5 inch

2шт.

6

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

17шт.

7

13-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

- hex, 5/16 NC x 4-1/4 inch

2шт.

8

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

9

3132544R2

PLUG

- drain

1шт.

10

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

Part of crankcase gaskets service kit P/N REF

1шт.

11

3144697R2

OIL PAN GASKET SET

- oil pan

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 10 (See Fig. 2-62)

1шт.
