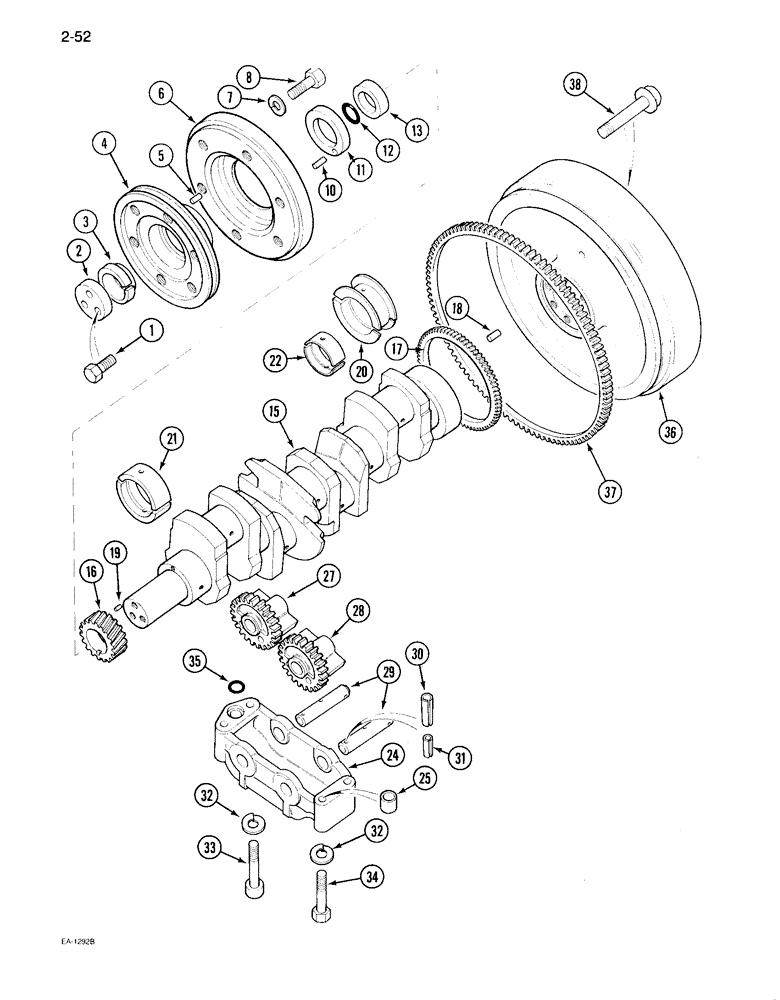

Запчасти Case IH 895 (2-52) - CRANKSHAFT (02) - ENGINE

1

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, grade 8, Crankshaft

3шт.

2

3055154R1

WASHER

- pressure, crankshaft

1шт.

3

2-3055152R91

RING - clamping (replaced 3138874R1), crankshaft

1шт.

4

3136324R11

PULLEY

ASSEMBLY - crankshaft

1шт.

5

932338R1

DOWEL,M4 x 14

PIN - dowel, crankshaft

1шт.

6

3136283R1

DAMPER

- vibration, crankshaft

1шт.

7

933806R1

WASHER

- lock, crankshaft

6шт.

8

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Crankshaft Hex, 3/8"-16 x 5/8", G5, Full Thd

6шт.

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal, crankshaft

1шт.

10

932681R1

DOWEL,4mm OD x 24mm L

Pin, Crankshaft M4 x 24, Oval

1шт.

10

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm, crankshaft

1шт.

10

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm, Crankshaft

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - distance, crankshaft

1шт.

12

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm (See Fig. 2-62), crankshaft

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - radial lip, crankshaft front, crankshaft

1шт.

3228376R91

BEARING ASSY

ASSEMBLY - standard

1шт.

15

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard size

1шт.

16

3055028R1

PINION

GEAR - pinion, crankshaft, 33 teeth, crankshaft

1шт.

17

3144700R1

GEAR

- balancer drive, crankshaft

1шт.

18

37-2614

DOWEL,3/8" x 7/8"

PIN - dowel, 3/8 x 7/8 inch, crankshaft

1шт.

19

932169R1

LOCK PIN,M4 x 10, Slotted

Spring, Crankshaft M4 x 10, Slotted

1шт.

20

3055129R21

CRANKSHAFT BEARING

BEARING - main, standard size, crankshaft

1шт.

3056820R11 is .250MM 3056875R11 is .500MM AND 3055776R11 is .750MM UNDER.

1шт.

21

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard size, crankshaft

4шт.

3056832R21 is .250MM,3056877R21 is .500MM AND 3055779R21 is .750MM UNDER.

1шт.

22

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size, crankshaft

4шт.

3144701R93

BALANCER

ASSEMBLY - crankshaft

1шт.

3056834R11 is.250MM, 3056879R11 is .500MM AND 3055781R11 is .750MM UNDER.

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - crankshaft balancer

1шт.

25

3055174R1

BUSHING

- dowel, crankshaft balancer

2шт.

3228375R92

BALANCER

WEIGHT ASSEMBLY - balancer, matched set, crankshaft balancer

1шт.

27

NSS

NOT SOLD SEPARAT

WEIGHT - idler, crankshaft balancer

1шт.

28

NSS

NOT SOLD SEPARAT

WEIGHT - drive, crankshaft balancer

1шт.

29

3132878R11

PIN,23mm OD x 93mm L

SHAFT - balancer weight, crankshaft

2шт.

30

932229R1

SPLIT PIN/SAFETY PIN

PIN - slotted spring, 4 x 20 mm, crankshaft balancer

2шт.

31

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring, Crankshaft balancer M2.5 x 20, Slotted

2шт.

32

3218543R1

LOCK WASHER

- lock, 7/16 inch, crankshaft balancer

4шт.

33

3144722R1

HEX SOC SCREW

- cap, hex socket, 7/16 NC x 5 inch, crankshaft balancer

1шт.

34

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 3 1/4", G5

1шт.

34

13-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 3 1/2", G5

1шт.

34

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 4", G5

1шт.

35

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

(See Fig. 2-62), Crankshaft balancer -118, 90 Duro, .862" ID x .103" Thk

1шт.

36

1808413C92

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear, flywheel

1шт.

37

3218637R1

CROWN WHEEL

GEAR - ring, flywheel

1шт.

38

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting

7шт.
