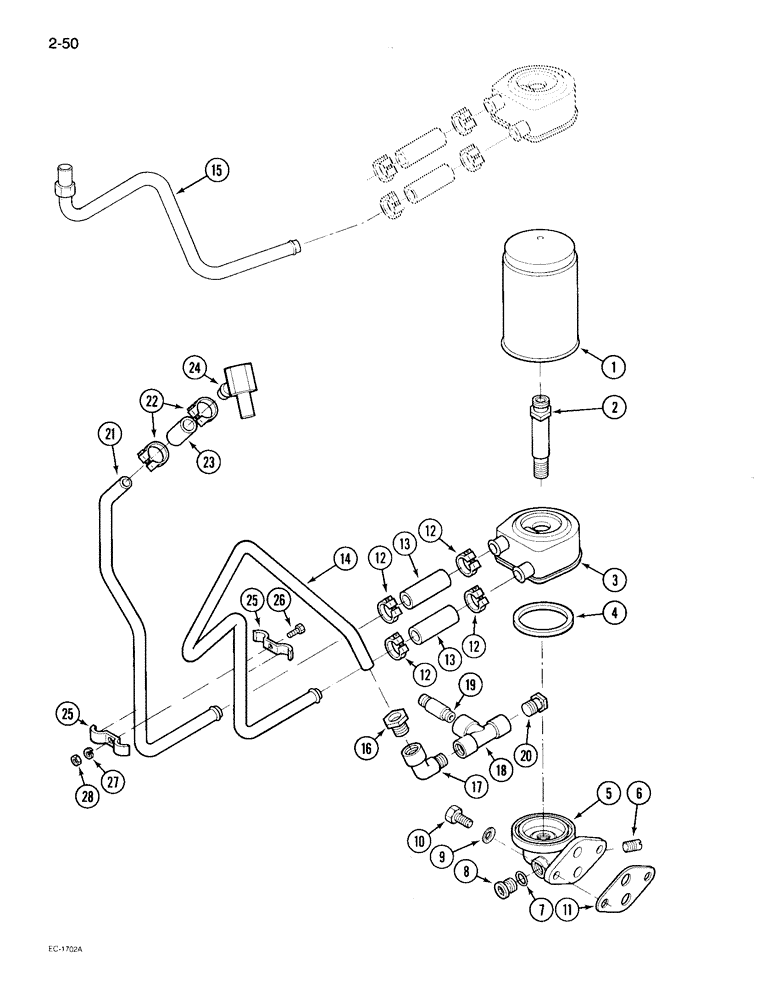

Запчасти Case IH 895 (2-50) - OIL FILTER AND COOLER (02) - ENGINE

1

1329020C2

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.10] order 1329020C2MP

FILTER - oil

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER - oil, Serial Range: (Optional-1329020C1)

1шт.

2

1329060C1

CONNECTOR, ELEC

CONNECTOR - threaded

1шт.

3

1329021C91

COOLER, OIL

COOLER - oil, Includes: Ref. 4

1шт.

4

1329059C1

SEALING RING,76.9mm OD x 4.9mm Width

RING - sealing

1шт.

Modine style is P/N 139726A1, is smaller than P/N 1329059C1

1шт.

5

3132209R2

PEDESTAL

BASE - oil filter

1шт.

6

444687

PLUG,Hex Soc, 1/8"-27

1шт.

7

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

8

3051784R1

PLUG

- hex socket, 16 mm

1шт.

9

3144513R1

SPRING WASHER

WASHER - disc spring type

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

3055237R2

GASKET

- oil filter socket

1шт.

12

3143364R1

CLAMP,19mm - 23mm

- hose

4шт.

13

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

14

1329007C1

PIPE

- oil cooler to water pump (Without coolant filter)

1шт.

15

1329004C1

PIPE

- tee union to oil cooler (With coolant filter) (See Fig. 2-18)

1шт.

16

222-507

TUBE NUT,7/8"-18

NUT - union, 5/8 inch O.D. tube

1шт.

17

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree, 5/8 inch O.D. tube

1шт.

18

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe

1шт.

19

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER - pipe long, 1/2 NPT x 1-1/2 inch

1шт.

20

444630

PLUG,Hex Hd, 1/2"-14

- hex, pipe

1шт.

21

1329006C1

PIPE,15mm Dia, 437, 136 mm L

TUBE - oil cooler to water pump carrier

1шт.

22

3143364R1

CLAMP,19mm - 23mm

- hose

2шт.

23

3228045R1

HOSE

- connecting

1шт.

24

3228044R1

ELBOW

- 90 degree

1шт.

25

3218744R1

CLAMP

- tube

2шт.

27

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

1шт.

28

25-104

NUT,1/4"-20, G5

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
